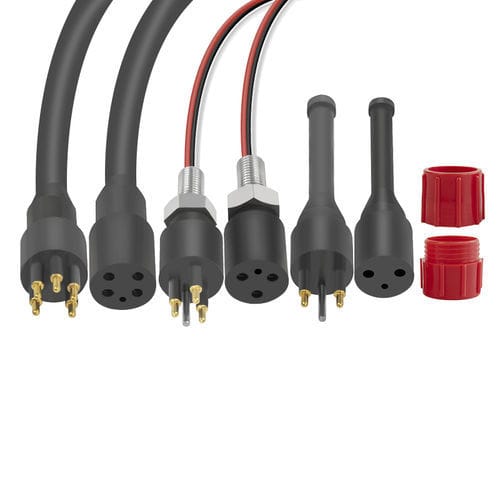

Marine connector Circular Series (2-5 contacts)
electricfor aquaculturefor shipbuilding

Marine connector - Circular Series (2-5 contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - electric / for aquaculture / for shipbuilding
Marine connector - Circular Series (2-5 contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - electric / for aquaculture / for shipbuilding
Marine connector - Circular Series (2-5 contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - electric / for aquaculture / for shipbuilding - image - 2
Marine connector - Circular Series (2-5 contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - electric / for aquaculture / for shipbuilding - image - 3
Marine connector - Circular Series (2-5 contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - electric / for aquaculture / for shipbuilding - image - 4
Marine connector - Circular Series (2-5 contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - electric / for aquaculture / for shipbuilding - image - 5
Marine connector - Circular Series (2-5 contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - electric / for aquaculture / for shipbuilding - image - 6
Marine connector - Circular Series (2-5 contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - electric / for aquaculture / for shipbuilding - image - 7
Add to favorites
Compare this product

Characteristics

Type
electric
Application domain
for aquaculture, oceanographic research, for shipbuilding, marine
Shape
circular
Contact number
4 contacts, 2 contacts, 3 contacts, 5 contacts
Other characteristics
inline

Description

General Description
  • Lanhe circular connectors with 2, 3, 4, and 5 contacts offer compact waterproof solutions for harsh environments.
  • These durable industrial-grade connectors feature corrosion-resistant materials for reliable performance in marine, outdoor, and automation applications.
  • Easy to install with secure connections.

Drawing Information
  • Dimensions in mm
  • Threads in inches
  • 1 inch = 25.4 mm

Connector Specification
  • Contacts: 2, 3, 4, 5
  • Inline cable: 1 mm²
  • BH Lead: 1 mm²
  • Electrical specification: 600V @ 6-15A
  • Contact resistance: ＜ 0.01Ω
  • Insulation resistance: ＞ 200mΩ
  • Mating: ＞ 500 cycles
  • Temperature rating: -4 ℃ ~ +60 ℃
  • Depth rating: 6000m

Inline Cable Color Code
  • 1. Black
  • 2. White
  • 3. Red
  • 4. Green
  • 5. Orange

Material Specification
  • Connector body: chloroprene rubber
  • BH body: 316L stainless steel/titanium
  • Contacts: gold-plated brass
  • Nut and washer: 304 stainless steel
  • O-ring: nitrile
  • Locking sleeve: POM

Available Options
  • Cable length
  • Shell material: stainless steel, titanium
  • Thread length

Application Fields
  • Oil and gas industry
  • Marine renewable energy
  • Mine detection and neutralization
  • Oceanographic research and exploration
  • Underwater communication and networking
  • Aquaculture and underwater farming
  • Marine construction and infrastructure

Features / Technical Specifications
  • Available contacts: 2, 3, 4, 5
  • Body material: chloroprene rubber
  • BH body material: 316L stainless steel/titanium
  • Contact material: gold-plated brass
  • Nut and washer material: 304 stainless steel
  • O-ring material: nitrile
  • Locking sleeve material: POM
  • Contact resistance: ＜ 0.01Ω
  • Insulation resistance: ＞ 200mΩ
  • Operating temperature: -4 ℃ ~ +60 ℃
  • Maximum depth: 6000m
  • Voltage rating: 600V
  • Current rating: 6-15A
