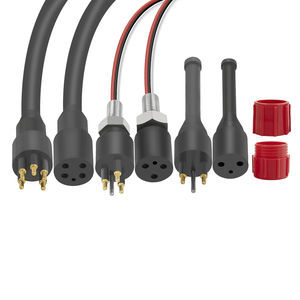

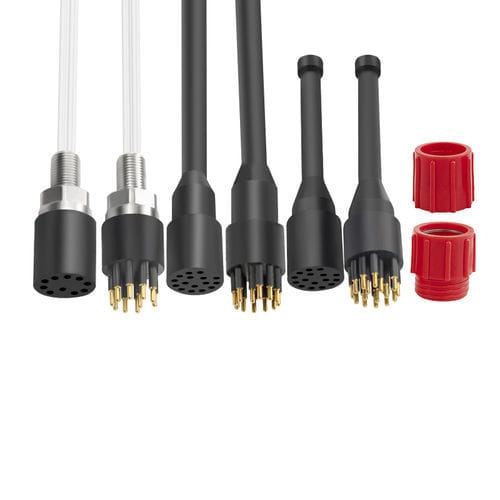

Subsea connector Circular Series (6-8-10 contacts)electricfor aquaculturefor shipbuilding
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- subsea, for aquaculture, oceanographic, for shipbuilding
- Shape
- circular
- Contact number
- 8 contacts, 6 contacts, 10 contacts
- Other characteristics
- inline
Description
Drawing Information:
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Specification:
6 and 8 Contacts Inline Cable Color Code:
Material Specification:
Options include:
Application Fields:
Technical Characteristics / Specifications:
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Specification:
- Contacts: 6, 8, 10
- Inline Cable: 1 mm²
- BH Lead: 1 mm²
- Electrical Specification: 600V @ 6-15Amp
- Contact Resistance: <0.01Ω
- Insulation Resistance: >200MΩ
- Mating: >500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
6 and 8 Contacts Inline Cable Color Code:
- 1. Black
- 2. White
- 3. Red
- 4. Green
- 5. Orange
- 6. Blue
- 7. White/Black
- 8. Red/Black (Brown)
Material Specification:
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
Options include:
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields:
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
- Marine Construction & Infrastructure
Technical Characteristics / Specifications:
- Contacts: 6, 8, 10
- Inline Cable: 1 mm²
- BH Lead: 1 mm²
- Electrical Specification: 600V @ 6-15Amp
- Contact Resistance: <0.01Ω
- Insulation Resistance: >200MΩ
- Mating: >500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
