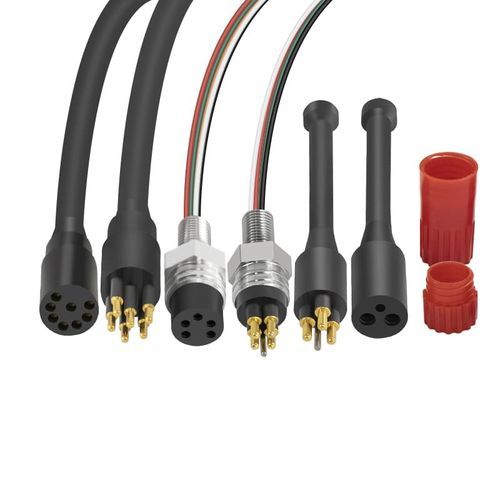

Underwater connector Micro Circular Series（2-8 Contacts）electricfor aquaculturefor ROV
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- underwater, for aquaculture, for ROV, oceanographic research, oceanographic, for AUVs, for shipbuilding, for divers, for sailboats, marine
- Shape
- micro circular
- Contact number
- 4 contacts, 8 contacts, 2 contacts, 6 contacts, 3 contacts, 5 contacts
- Other characteristics
- inline, bulkhead, dummy
Description
Product Description
Lanhe Underwater Subsea Micro Circular connectors deliver reliable performance in extreme underwater environments, even under high-pressure conditions at significant depths.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification
Contacts: 2, 3, 4, 5, 6, 8
Inline Cable and BH Lead: 2,3,4 Contacts: 1 mm²; 5,6,8 Contacts: 0.5mm²
Electrical Specification: 300V@3-10Amp
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code:
Material Specification
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Options include
Application Fields
Lanhe Underwater Subsea Micro Circular connectors deliver reliable performance in extreme underwater environments, even under high-pressure conditions at significant depths.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification
Contacts: 2, 3, 4, 5, 6, 8
Inline Cable and BH Lead: 2,3,4 Contacts: 1 mm²; 5,6,8 Contacts: 0.5mm²
Electrical Specification: 300V@3-10Amp
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code:
- 1. Black
- 2. White
- 3. Red
- 4. Green
- 5. Orange
- 6. Blue
- 7. White/Black
- 8. Red/Black(Brown)
Material Specification
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Options include
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
- Marine Construction & Infrastructure
