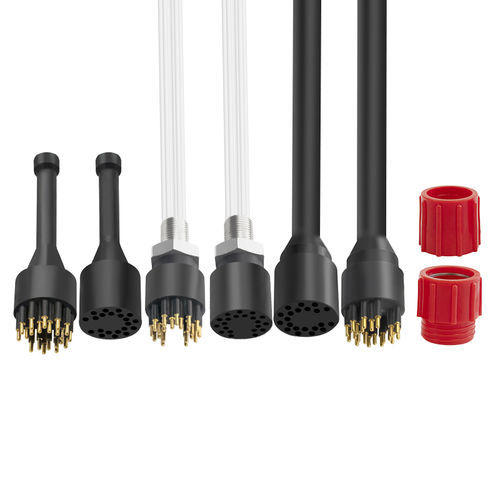

Subsea connector Micro Circular Series 21 Contactselectricfor AUVsfor ROV
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- subsea, for ROV, for AUVs
- Shape
- micro circular
- Contact number
- 21 contacts
- Other characteristics
- inline
Description
Product Description
Lanhe 21-pin subsea connector: IP68 waterproof, corrosion-resistant electrical connector for ROVs, AUVs, and offshore equipment. Reliable deep-sea performance.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification
Material Specification
Options include
Application fields
Lanhe 21-pin subsea connector: IP68 waterproof, corrosion-resistant electrical connector for ROVs, AUVs, and offshore equipment. Reliable deep-sea performance.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification
- Contacts: 21
- Inline Cable: 0.5mm²
- BH Lead: 0.5mm²
- Electrical Specification: 300V@3-5Amp
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Mating: ＞500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
- Inline Cable Color Code: White (No. mark)
Material Specification
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
Options include
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application fields
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
- Marine Construction & Infrastructure
