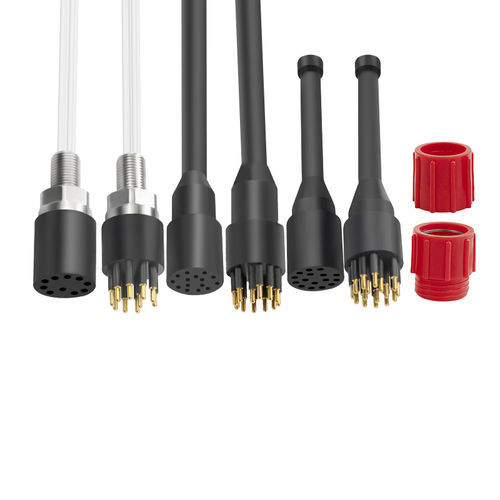

Oceanographic connector Micro Circular Series (9-16 Contacts)
for aquacultureoceanographic researchsubsea

Oceanographic connector - Micro Circular Series (9-16 Contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - for aquaculture / oceanographic research / subsea
Oceanographic connector - Micro Circular Series (9-16 Contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - for aquaculture / oceanographic research / subsea
Oceanographic connector - Micro Circular Series (9-16 Contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - for aquaculture / oceanographic research / subsea - image - 2
Oceanographic connector - Micro Circular Series (9-16 Contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - for aquaculture / oceanographic research / subsea - image - 3
Oceanographic connector - Micro Circular Series (9-16 Contacts) - Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. - for aquaculture / oceanographic research / subsea - image - 4
Add to favorites
Compare this product

Characteristics

Application domain
subsea, for aquaculture, oceanographic research, oceanographic
Shape
micro circular
Contact number
12 contacts, 16 contacts, 10 contacts, 9 contacts

Description

Product Description
  • Micro Circular 9/10/12/16 Contacts Underwater Connectors are designed for reliable subsea applications. Ideal for offshore energy, underwater robotics, and marine instrumentation.

Drawing Information
  • Dimensions in mm
  • Threads in inches
  • 1 inch = 25.4mm

Connector Specification
  • Contacts: 9, 10, 12, 16
  • Inline Cable: 0.5mm²
  • BH Lead: 0.5mm²
  • Electrical Specification: 300V @ 3-5Amp
  • Contact Resistance: <0.01Ω
  • Insulation Resistance: >200MΩ
  • Mating: >500
  • Temperature Rating: -4℃~+60℃
  • Depth Rating: 6000m
  • Inline Cable Color Code: White (No. mark)

Material Specification
  • Connector Body: Chloroprene rubber
  • BH Body: 316L stainless steel/titanium
  • Contacts: Gold plated brass
  • Nut and Washer: 304 stainless steel
  • O-ring: Nitrile
  • Locking Sleeve: POM

Options include
  • Cable length
  • Shell material: stainless steel, titanium
  • Thread length

Application Fields
  • Oil & Gas Industry
  • Marine Renewable Energy
  • Mine Detection & Neutralization
  • Oceanographic Research & Exploration
  • Underwater Communication & Networking
  • Aquaculture & Underwater Farming
  • Marine Construction & Infrastructure

Caractéristiques / spécifications techniques
  • Contacts: 9, 10, 12, 16
  • Inline Cable: 0.5mm²
  • BH Lead: 0.5mm²
  • Electrical Specification: 300V @ 3-5Amp
  • Contact Resistance: <0.01Ω
  • Insulation Resistance: >200MΩ
  • Mating: >500
  • Temperature Rating: -4℃~+60℃
  • Depth Rating: 6000m
  • Inline Cable Color Code: White (No. mark)
  • Connector Body: Chloroprene rubber
  • BH Body: 316L stainless steel/titanium
  • Contacts: Gold plated brass
  • Nut and Washer: 304 stainless steel
  • O-ring: Nitrile
  • Locking Sleeve: POM

Catalogs

Other Guangzhou Lanhe Electronic Manufacturing Co.,Ltd. products

Micro Circular Series
