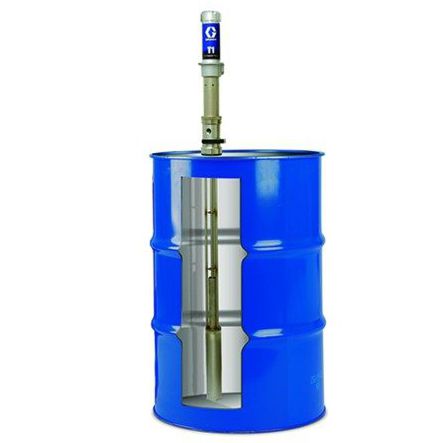

Shipyard pump T series
transfer

shipyard pump
shipyard pump
shipyard pump
shipyard pump
shipyard pump
Add to favorites
Compare this product

Characteristics

Application domain
shipyard
Applications
transfer
Flow rate

20 l/min, 28 l/min (5.28 us gal/min)

Description

T1, T2 and T3 Transfer Pumps Transfer Pumps Ideal for moving A and B materials to Reactor spray machines Graco's family of transfer pumps maintain performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump. Provide consistent feed pressures and flow rates for dependable results Lower pressure drops with higher viscosity materials at any ambient temperature Designed and manufactured by the worldwide leader in pump technology Longer lasting pump - designed for durability with less maintenance Quick-release bung adapter for easy drum removal without interference from hose connections Stainless steel wetted parts for corrosion-resistance PTFE seals for improved performance and less maintenance T2 2:1 Ratio Transfer Pump Metric Maximum Fluid Working Pressure* 2.8MPa, 28 bar Pressure Ratio 2.25:1 Max Output Flow (continuous) 20 lpm Max Output Flow (intermittent) 28 lpm Maximum Air inlet pressure 1.2 MPa, 12 bar Pump cycles per 1 gallon (3.8 liters) 15.9 Maximum recommended pump speed for continuous operation 100 cycles per min (150 cycles per min intermittent) Gallons (liters) per pump cycle 0.24 l Air consumption See performance chart Maximum Ambient temperature 50° C Maximum Fluid Temperature 88° C Wetted parts Stainless Steel, PTFE Air Inlet Port 1/4 npt(f) Fluid Outlet Port 3/4 npt(f) Weight 9.5 kg
