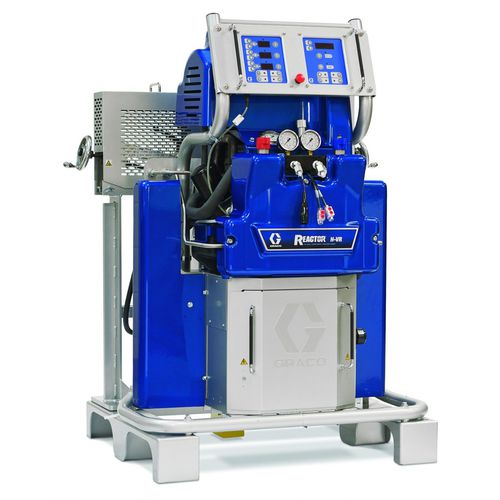

Multi-component spraying machine Reactor H-VR
shipyard

multi-component spraying machine
multi-component spraying machine
multi-component spraying machine
multi-component spraying machine
Add to favorites
Compare this product

Characteristics

Type
multi-component
Application domain
shipyard

Description

Reactor H-VR Variable Ratio Hydraulic Proportioner Easy-to-operate variable ratio system - ideal for material manufacturer test labs Engineered for specialty materials that require a range or difference in volumetric ratio, the Reactor H-VR allows you to spray ratios from 1:1 to 2.5:1. The system provides infinitely adjustable volume ratio – the operator can dial in the exact volume ratio to adjust the A and B pumps to dispense the correct amount of material. For applications that require a range or difference in volumetric ratios Well suited for test labs for material suppliers or original equipment manufacturers Offers ratio range from 1:1 to 2.5:1 Easy operation Ratio adjustment wheel lets you dial in exact dispensing ratios Provides consistent, uniform mix of unique materials Built-in steel pallet for easy transport - includes casters Reactor H-VR Maximum Fluid Working Pressure 241 bar, 24.1 MPa Fluid Inlets 3/4 npsm union in 1 in. npt(f) ball valve Fluid Circulation Ports 1/4 npsm(m), with plastic tubing, 250 psi (1.75 MPa, 17.5 bar) maximum Maximum Fluid Temperature 881°C Maximum Output ( 10 weight oil at ambient temperature) 1:1 3.0 gpm (11.4 liter/min) (60 Hz) Output per Cycle (A and B) Variable: 2 oz.- 5 oz. (60 cc - 150 cc) per pump* Stroke Length Variable: 2 in. - 5 in. (5.08 cm - 12.7 cm) Amperage Requirement See instruction manual. Heater Power (A and B heaters total, no hose) See instruction manual. Hydraulic Reservoir Capacity 13.6 liters Recommended Hydraulic Fluid Citgo A/W Hydraulic Oil, ISO Grade 46 Sound Power, measured per ISO 9416–2 90.9 dB(A) Sound Pressure, measured 1 m from equipment 84.0 dB(A) Weight 433 kg
