Paint spraying proportioner Reactor A-25
two-componentshipyard

paint spraying proportioner
paint spraying proportioner
Add to favorites
Compare this product

Characteristics

Dispensed product
paint
Type
two-component
Application domain
shipyard

Description

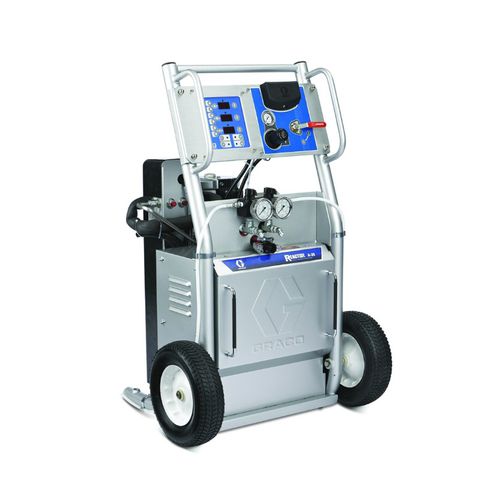

Reactor A-25 Air-Driven Foam Proportioner For spraying foam insulation - applies up to 25 lb (11.4 kg) per minute The Reactor A-25 is a Graco-engineered spray foam proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when you're spraying at maximum flow rates - resulting in better quality foam. Maintains temperature setpoints for better yield Maintains consistent output pressure for uniform spray pattern Easy to operate and maintain Best choice for affordability and durability Reactor A-25 Plural Component Proportioner Maximum Fluid Working Pressure 14 MPa, 138 bar Maximum Air Supply Pressure 0.9 MPa, 9 bar Maximum Air Working Pressure 550 kPa, 5.5 bar Pressure Ratio 25:1 Air consumption with 02 tip at 1500 psi stall pressure 0.8m³/min Machine Maximum Power with hose 9000 Watts Amperage Requirement (Full Load Peak)* 40 amps @ 230 V, 1 Phase; 32 amps @ 230 V, 3 Phase; 18.5 amps @ 380 V, 3 Phase Maximum Heater Fluid Temperature 88°C Maximum Hose Fluid Temperature 82°C Maximum Ambient Temperature 49°C Maximum Output 11.4 kg/min Output Per Cycle (A and B) 0.095 ltr/cycle Heater Power 6000 Watts Hose Power 2790 Watts Sound Pressure (see NXT air motor manual) 70.2 dB(A) Sound Power (see NXT air motor manual) 80.1 dB(A)

Catalogs
