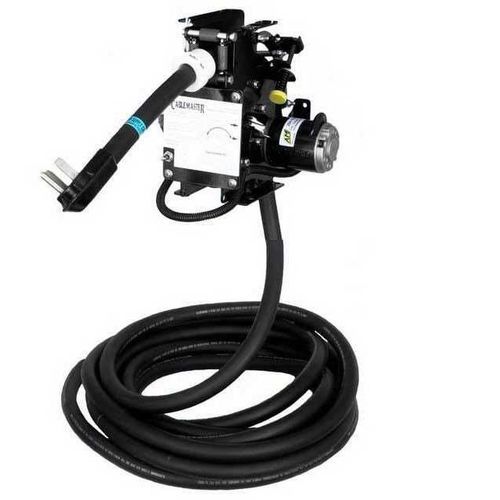

Motorized cable reel RLC

electric

Overview

• Low-cost RV power cable handling system designed for reliable cable storage and retrieval
• Supports a wide range of cable diameters and conductor styles
• No slip rings required; suitable for frequent connection/disconnection cycles

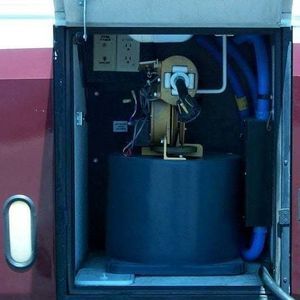

• Versatile mounting options for vehicle installations

Customizable Features

• Configured for US and EU power setups
• Supports common RV power cable outside diameters of ~0.5"–0.8" (12–20 mm)
• Available for 12 V and 24 V DC input configurations
• Capacity limited only by available storage space—handles unlimited cable length in practice

Models / Specs

• 04016 — Input: 12 VDC; Operating: 7–9 A under load; Cable types: 6/3, 8/1, 6/4, 50AMP 125/250VAC; Conductor styles: S, SE, SO, ST, STO, SOW; Details: RLC unit only
• 04016-C-36 — Input: 12 VDC; Operating: 7–9 A under load; Includes 36' cord with storage container; Cable and conductor compatibility as above
• 04016-C-45 — Input: 12 VDC; Operating: 7–9 A under load; Includes 45' cord with storage container; Cable and conductor compatibility as above

Installation / Product Note
The RLC is a legacy Cablemaster product offering a cost-effective alternative for RV power cable handling. It integrates the core handling features of other Cablemaster units while providing simple installation options and maintenance access.

Documentation & Literature (available)

• RLC brochure and user manual
• Technical sheets and replacement parts list
• Dimensions and In‑Limit switch guides
• RV power cable brochures and PowerSafe 50A RV cordset specification sheet

Technical specifications

• Input voltage: 12 VDC (operating current approx. 7–9 A under load)
• Supported cable types: 6/3, 8/1, 6/4, 50AMP 125/250VAC
• Supported conductor styles: S, SE, SO, ST, STO, SOW
• Nominal outside cable diameter: ~0.5"–0.8" (12–20 mm)
• Available variants: 04016 (unit only), 04016-C-36 (36' cord + storage), 04016-C-45 (45' cord + storage)
• Handles effectively unlimited cable length (limited by storage space)
• Mounting: multiple mounting configurations supported for vehicle installation
