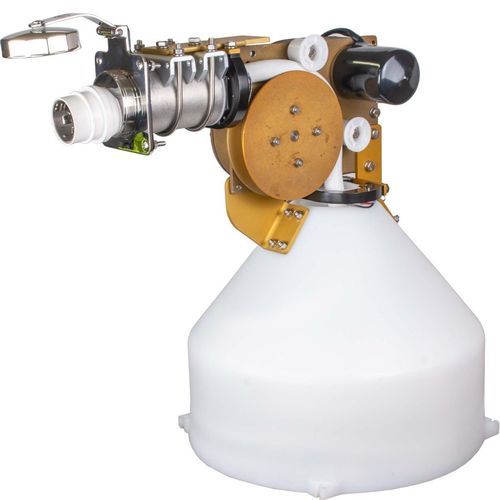

Motorized cable reel CM-7 Compact

electricfor boats

Product Overview
The full convenience of Glendinning® Cablemaster™, in the most compact footprint available. The CM-7 Compact provides automatic pay-in and pay-out of shore power cable and is engineered to allow a 50' 50amp shore power cable to be stored in the smallest possible footprint while providing reliable dock-to-boat power connection and long-term marine durability.

Features

• Most compact ultimate solution for 50' 50amp shore power cable — engineered to store 50' of 50amp cable in the most compact footprint possible.
• Easy operation — extend or retract cable with the simple flip of a switch or with the optional wireless remote control.
• Efficient storage — 50' 50amp cable automatically coils into a storage container below the power unit.
• Easy installation — shipped as a kit with cable already installed and integral mounting feet for easier installation.
• Reliable power — direct "dock to boat panel" connection; eliminates the need for slip rings or brush connections.
• Multiple installation options — accessories available to allow power units and/or hawse pipes to be mounted remote from the final cable storage position.
• Designed and approved for marine use (product approvals indicated on site: CE, ISO 8846).
• Capable of storing cable separately to allow effectively unlimited cable length storage when used with remote guide rollers or hawse-pipe accessories.

Models / Specs (table)
Part Number | Input Voltage | Cable Type | Cable Color | Cable Length
04007-12-64W | 12 VDC | 125/250v 6/4 | White | 50' [15m]
04007-24-64W | 12 VDC | 125/250v 6/4 | White | 50' [15m]
04007-12-63IW | 24 VDC | 125/250v 6/3 Iso | White | 50' [15m]
04007-24-63IW | 24 VDC | 125/250v 6/3 Iso | White | 50' [15m]
04007-12-64Y | 12 VDC | 125/250v 6/4 | Yellow | 50' [15m]
04007-24-64Y | 24 VDC | 125/250v 6/4 | Yellow | 50' [15m]
04007-12-63W | 12 VDC | 125v 6/3 | White | 50' [15m]
04007-24-63W | 24 VDC | 125v 6/3 | White | 50' [15m]

Documentation (selected)

• Cablemaster CM Sell Sheet
• Cablemaster Installation and Accessory Guide
• Cablemaster 50 AMP Molded Cordset brochure
• Cablemaster CM Application Guide
• CM-7 Gear Replacement Guide
• Cablemaster CM Installation & Operation Manual
• CM Troubleshooting Guide
• 04154-1B Wireless Remote Control Programming Guide (remote programming/wiring for optional wireless remote)

Usage Notes
The Cablemaster CM-7 is designed to withstand the marine environment and provides both automatic pay-in and pay-out of shore power cable without slip rings or brush connections. It stores heavy 50 amp power cable conveniently and can be used with guide roller assemblies or accessories to position the final cable entry several yards from the Cablemaster unit if required.

Technical specifications

• Designed to store 50' (15 m) 50 amp shore power cable as standard.
• Available part numbers for 12 VDC and 24 VDC input operation.
• Supported cable types: 125/250V 6/4, 125/250V 6/3 (isolated), 125V 6/3 (various part numbers correspond to these types).
• Cable colors available: White and Yellow (model-dependent).
• Operation: electric motorized reel with switch control and optional RF wireless remote control.
• Installation: supplied as a kit with cable pre-installed and integral mounting feet; multiple accessories for remote mounting and hawse-pipe installations.
• Maintenance/repair documentation available: gear replacement, motor replacement, troubleshooting, remote control wiring and programming guides.
• Approvals / testing: product pages state CE and ISO 8846 compliance where indicated.
