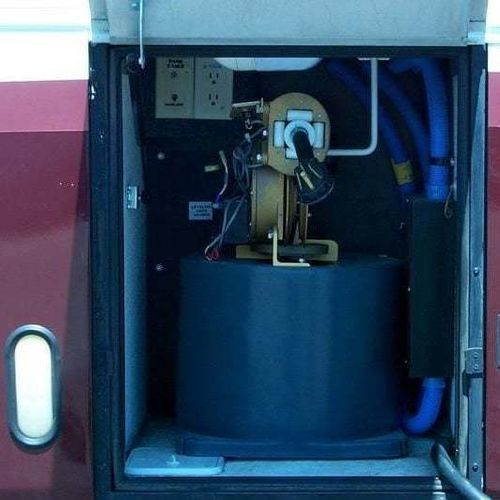

Motorized cable reel RVCM-7

electric

Overview

• Automatic retraction system for RV power cables with no slip rings
• Unlimited cable capacity — accepts long lengths without internal slip rings
• Compatible with a variety of cable jackets and conductor configurations
• Versatile mounting options for vehicle installations
• Push-button extend/retract operation for quick deployment and stowage
• Reduces handling effort and eliminates manual coiling
• Designed for durable, maintenance‑free service in mobile environments
• Certified: CE, ISO 8846

Models / Part Numbers

• 04012 — 12 VDC | accepts 6/3, 8/1, 6/4 50AMP 125/250VAC cable jackets (S, SE, SO, ST, STO, SOW) | CM-7 unit only
• 04012-36 — 12 VDC | same cable types | includes 36 ft. (11 m) cable
• 04012-C-36 — 12 VDC | same cable types | includes 36 ft. cable and storage container
• 04013 — 24 VDC | same cable types | CM-7 unit only

Key Specifications

• Cable outside diameter: 0.5" to 0.8" (12 to 20 mm)
• Typical cable: #10 AWG / 6 mm2 (3–4 conductors)
• Retraction motor voltage: selectable 12 VDC or 24 VDC
• Cable jacket types accepted: S, ST, SE, PUR
• Certifications: CE, ISO 8846

Documentation (available)

• RVCM-7 Brochure
• PowerSafe 50amp RV Cordset Spec Sheet
• RV Power Cable Brochure
• Cablemaster CM-7 Gear Replacement Guide
• Cablemaster CM Installation & Operation Manual
• Cablemaster CM Sales Sheet
• Cablemaster CM Manual
• Cablemaster CM-7 Dimensions

Usage / Notes
Intended for installation in recreational vehicles to automate extension and retraction of shore power cable. Provides automatic in/out limit switching and options for integrated storage or pre-fitted 36 ft cable variants.

Technical specifications

• Unlimited cable capacity (no slip rings)
• Cable OD range: 0.5"–0.8" (12–20 mm)
• Typical cable size: #10 AWG / 6 mm2 (3–4 conductors)
• Accepts jacket types: S, ST, SE, PUR
• Retraction motor: 12 VDC or 24 VDC selectable
• Available part numbers: 04012, 04012-36, 04012-C-36, 04013
• Includes options with integrated storage container or 36 ft cable
• Certifications: CE, ISO 8846
