Engine control lever RSCHthrottlemechanicalsingle-lever
Add to favorites
Compare this product
Characteristics
- Applications
- for engines, throttle
- Command
- mechanical
- Type
- single-lever
- Application domain
- for boat
- Mounting
- double
- Length
118 mm
(5 in)- Width
87 mm
(3 in)- Height
129 mm
(5 in)
Description
Overview

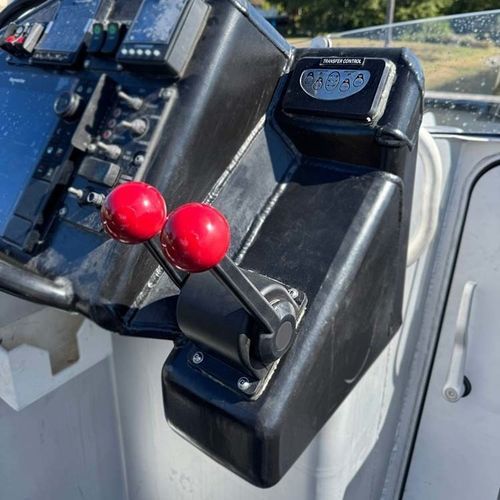

The RSCH Top Mount Control Head by Glendinning Products is a configurable marine control head engineered for harsh maritime environments. It features IP68-rated construction, dual-channel Hall Effect sensing for reliable handle position detection, and multiple keypad and handle permutations for flexible helm integration.
Key Features
Keypad configuration options
Handle configuration options
Specifications (table)
DURABILITY: Resists 300 hr ASTM-B117 salt spray with no red rust
ENVIRONMENTAL: IP68 at 1 m H2O with ports plugged
UV RATING: UV resistant — 1000 hours
CERTIFICATIONS: Complies with the intent of EN60945:2002, IEC 60533:1999, ISO 25197:2013, and ABYC P-24:2013
RoHS/REACH: Compliant
Additional notes
Available in multiple keypad and handle permutations to suit production volume and application requirements. The product employs industry-leading sensing technology and is designed for long-term durability in marine environments.
Technical specifications
The RSCH Top Mount Control Head by Glendinning Products is a configurable marine control head engineered for harsh maritime environments. It features IP68-rated construction, dual-channel Hall Effect sensing for reliable handle position detection, and multiple keypad and handle permutations for flexible helm integration.
Key Features
- IP68 commercial-grade construction suitable for extreme marine environments
- Compact footprint for integration in nearly any helm station
- Multiple keypad and handle configuration options to match vessel requirements
- Dual-channel (Hall Effect) sensors for accurate handle position measurement and improved moisture tolerance
- Selectable single or triple detent (neutral-only, or ahead idle / neutral / reverse idle)
- Resists 300 hr ASTM-B117 salt spray with no red rust
- UV resistant (1000 hours)
- RoHS/REACH compliant
Keypad configuration options
- Remote / No Keypad
- Front Keypad
- Side Keypad
Handle configuration options
- Short Handle
- Long Handle
Specifications (table)
DURABILITY: Resists 300 hr ASTM-B117 salt spray with no red rust
ENVIRONMENTAL: IP68 at 1 m H2O with ports plugged
UV RATING: UV resistant — 1000 hours
CERTIFICATIONS: Complies with the intent of EN60945:2002, IEC 60533:1999, ISO 25197:2013, and ABYC P-24:2013
RoHS/REACH: Compliant
Additional notes
Available in multiple keypad and handle permutations to suit production volume and application requirements. The product employs industry-leading sensing technology and is designed for long-term durability in marine environments.
Technical specifications
- Ingress protection rating: IP68 (1 m H2O, ports plugged)
- Salt spray resistance: 300 hr ASTM-B117 (no red rust)
- UV resistance: 1000 hours
- Sensors: Dual-channel Hall Effect sensors
- Detent options: Neutral-only or triple detent (ahead idle, neutral, reverse idle)
- Certifications: Meets intent of EN60945:2002; IEC 60533:1999; ISO 25197:2013; ABYC P-24:2013
- RoHS / REACH: Compliant
