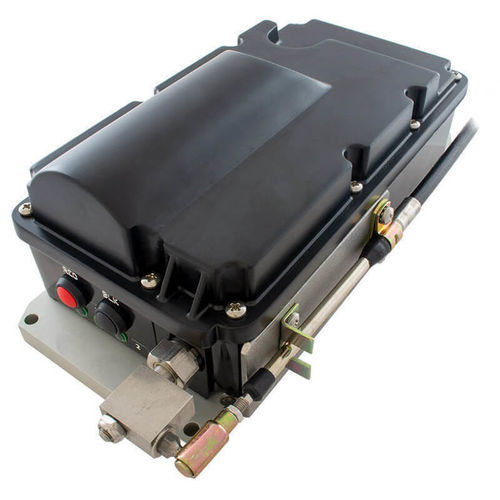

Boat actuator Smart Actuator™ 4

electriclinearfor trim tab systems

Overview
The Smart Actuator 4.2 is a single‑function linear mechanical actuator designed for marine control applications on all vessel types, including inboard, outboard, sterndrive and waterjet. It converts electronic commands into precise linear motion to operate throttles, shifts and trim devices.

Control inputs

• CANbus
• Analog input
• Switch control

Applications

• Mechanical engine throttle control
• Mechanical transmission shift (E‑Shift)
• Waterjet reverse bucket / pitch control
• Trim and trolling control

Models

• 11356E-A — Smart Actuator 4.2 External Cable - Analog Input
• 11356E-C4 — Smart Actuator 4.2 - Throttle / E-Shift
• 11356E-C10 — Smart Actuator 4.2 External Cable - Shift
• 11356E-C11 — Smart Actuator 4.2 - External Cable - Bucket/Pitch
• 11356E-C12 — Smart Actuator 4.2 - Troll

Technical specifications

• Operating voltage: 10 - 36 VDC
• Control input: CANbus / Analog / Switch Control
• Mechanical output force: 40 kg
• Output speed: 60 mm/s (can be reduced)
• Length: 233 mm (9.2 in)
• Width: 124 mm (4.87 in)
• Height: 90 mm (3.5 in)
• Ingress protection: IP67
• Other: Complies with CE requirements; 2 x switch outputs (for trim pump or electrical shift)
