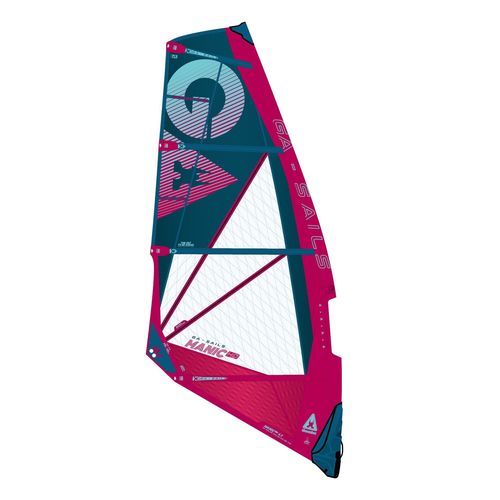

Wave windsurf sail Manic-HD

onshore waveRDM4-batten

Description
The MaNIC HD 2026 is a dedicated windsurf wave sail engineered for onshore and down-the-line wave performance. Its design emphasizes direct feedback, controlled power delivery and durable profile stability for a range of wave conditions.

Sizes

• 3.0
• 3.3
• 3.7
• 4.0
• 4.2
• 4.5
• 4.7
• 5.0
• 5.4
• 5.8

Colors

• C1 : Blue

Features

• CONTINUOUS RADIAL PANEL LAYOUT: Continuous panels aligned with the sail’s load paths to eliminate cross seams and improve load feedback.
• 2-PLY LUFF PANELS: Reinforced two-ply material on the luff panels for consistent load distribution and increased strength.
• 4-BATTEN CONSTRUCTION: Reactive, lightweight four-batten layout delivering balanced power and responsiveness.
• LIGHTWEIGHT TOP CONSTRUCTION: 2-Ply material used in the upper sail to reduce weight without sacrificing durability.
• CARBON RADIAL TAPES: Radial carbon tapes from the clew to stabilise the profile under load.
• ENHANCED STABILITY: Revised outline to reduce backhand pressure and improve control across conditions.
• ONE-PIECE MAST SLEEVE: Single-piece sleeve to lower overall rig weight and optimise stretch behaviour.

NEW IN 2026
The Continuous Radial Panel Layout is introduced on MaNIC, MaNIC HD and Boost models. Continuous radial panels follow natural load paths to remove cross seams, improving load distribution, profile stability and responsiveness for smoother handling.

Tech Specs
Size | Luff | Boom | MAST | IMCS | BASE | BATTENS | TOP | CAMS | DIAMETER | WEIGHT
3.0 | 325 | 133 | 340 | 14 | 0 | 4 | Adj | 0 | RDM | 2,76
3.3 | 336 | 140 | 340 | 14 | 0 | 4 | Adj | 0 | RDM | 2,89
3.7 | 358 | 145 | 340 | 14 | 18 | 4 | Adj | 0 | RDM | 3,01
4.0 | 372 | 149 | 370 | 17 | 2 | 4 | Adj | 0 | RDM | 3,1
4.2 | 380 | 153 | 370 | 17 | 10 | 4 | Fixed | 0 | RDM | 3,07
4.5 | 392 | 158 | 370 | 17 | 22 | 4 | Fixed | 0 | RDM | 3,22
4.7 | 400 | 162 | 370 | 17 | 30 | 4 | Fixed | 0 | RDM | 3,38
5.0 | 410 | 168 | 400 | 19 | 10 | 4 | Fixed | 0 | RDM | 3,48
5.4 | 424 | 174 | 400 | 19 | 24 | 4 | Fixed | 0 | RDM | 3,55
5.8 | 436 | 182 | 430 | 21 | 6 | 4 | Fixed | 0 | RDM | 3,68

Specifications / technical details

• Continuous Radial Panel Layout for improved load distribution and profile stability.
• Four-batten reactive construction on the MaNIC HD for balanced power and feel.
• Carbon Radial Tapes from the clew to stabilise profile.
• X-PLY used in the sail window on the HD version to increase durability.
• One-piece mast sleeve to reduce weight and optimise stretch behaviour.
• Available sizes: 3.0 / 3.3 / 3.7 / 4.0 / 4.2 / 4.5 / 4.7 / 5.0 / 5.4 / 5.8.
• Color option: C1 (Blue).
• Detailed per-size luff, boom, mast, IMCS, base, battens, top, cams, diameter and weight in Tech Specs.
