IHO/S-57 Edition 3 vector chart (IHO S-63 data protection scheme)
Admiralty Vector Chart Service by UKHO
C-MAP CAES
● ARCS raster chart
● C-MAP Professional+*
* C-MAP Professional+ is a private chart, hence not construed as replacement for paper chart.
▶ Compatibility with Admiralty Information Overlay (AIO) for further navigation safety
Additional AIO layer includes all Admiralty Temporary and Preliminary Notices to Mariners as well as additional ENC Preliminary Notices to Mariners, i.e., reported navigational hazards that have been incorporated into a paper chart, but have yet to be included in ENCs.
The service is free of charge as part of Admiralty Vector Chart Service (AVCS) by UKHO.
User Interface
▶ Task-based operation realized by combination of Status bar and InstantAccess bar™ providing quick access to the needed tasks/functions

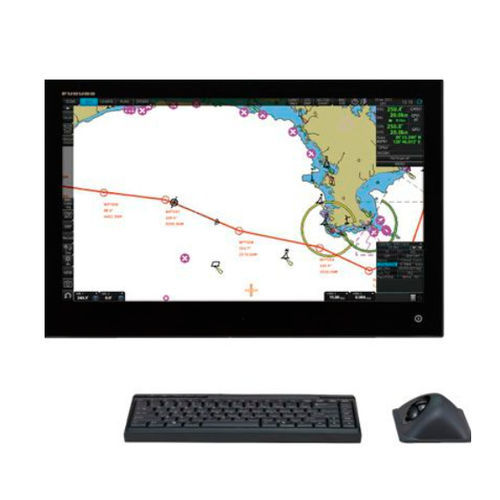

The user interface of the FMD-3100 centers on carefully organized operational tools: Status bar and InstantAccess bar™. The Status bar contains information about the operating status, and the InstantAccess bar™ contains all the tasks available. These operational tools deliver straightforward, task-based operation by which the operator can quickly perform navigational tasks without having to go deeper into an intricate menu tree.
Streamlined integration into the onboard navigation system; perfectly suited for ECDIS retrofitting projects
● 2 LAN ports and 4 serial ports are available to facilitate smooth integration into a bridge network as well as interface with onboard navigation sensors
● Flexibility in installation; supporting both table-top mounting* as well as flush-mounting to match the space availability in the wheelhouse
