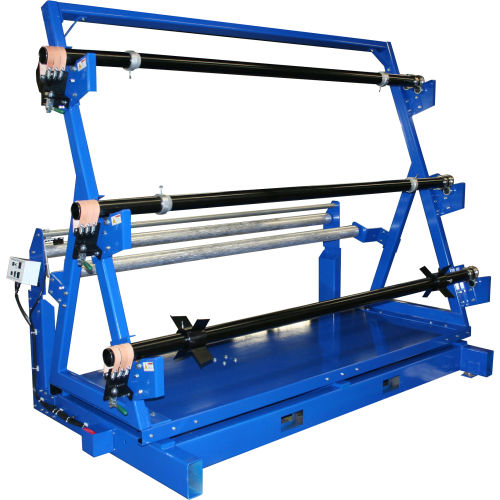

The Roll Stand System allows the user to easily handle rolled goods for spreading onto the cutting system, maintaining precise alignment of each ply with a photo-electric edge control unit. Many configurations and styles available.
Infra-red edge control sensors to detect edge of material
Optional 4th bar available
Three sets of cones recommended
Bar options include frozen, solid or expandabar
Width
66 in. (1.7m) 72 in. (1.8m) 78 in. (2.0 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information.
Standard Weight Capacity
2,000 lbs. (907 kg) 750 lbs. per bar (340kg)
Maximum Roll Diameter
20 in. (51 cm)
Power Requirements
110V or 220V, 1phase
Wrth or without automatic edge corttrol
3-strapbrake
Center support for wider machines, and for narrow heavy ma te riais
Shown with one bar
Bar options mclude frozen. solid or expandabar
Not recommended for stretchy fa bries, vinyl or lycra
