Shipyard storage rack CRA-317

for cutting table feed

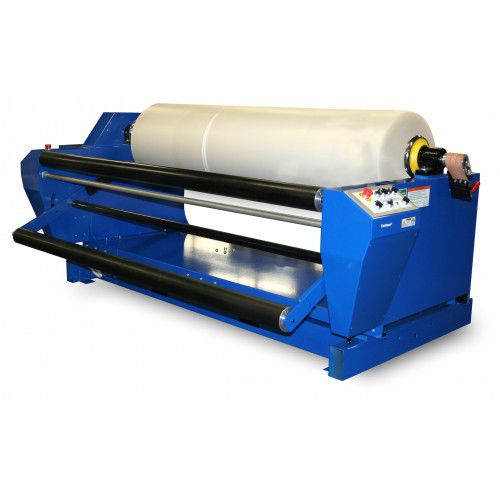

The Motor Driven Roll Stand is engineered to introduce rolled material goods for spreading onto a fully automated, conveyor cutting system. Eastman's Motor Driven Roll stand features center of roll drive and an ultrasonic beam measuring roll diameter to control feeding speeds to the cutting system. Roll-drive can also be optionally turned-off so that the system functions like a standard Roll Stand. Dancer bar control to minimize stretch Optional air shafts Optional 60 in. (152cm) roll diameter capacity, max. roll weight 500 lbs. (227kg) Automatic edge control included Ultrasonic beam to measure roll diameter and control feeding speeds to the cutting system 3 strap brakes Center roll drive Overhead loading only Roll drive can be disabled Super chucks Not recommended for clear material, or vinyl Great for fiberglass Width 66 in. (1.7m) 72 in. (1.8m) 78 in. (2.0 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. Standard Weight Capacity 2,000 lbs. (907kg) Maximum Roll Diameter 52 in. (132 cm) Power Requirements 230V, 3ph, 3HP (5 HP optional)
