Shipyard storage rack CRA-355

for cutting table feedfor fabric rolls

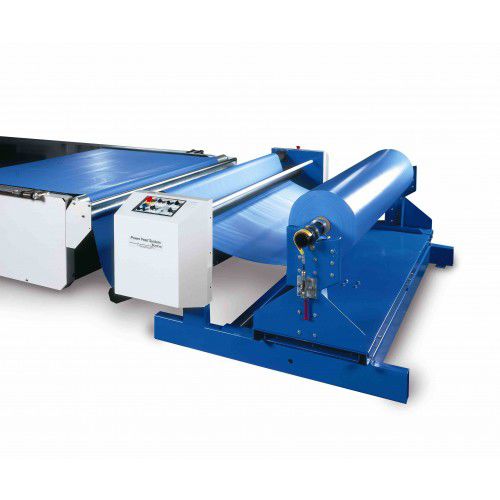

The Power Feed System simplifies material feeding to the cutting system by automatically adjusting and maintaining consistent tension for any material type. An optional photo-electric edge control unit ensures precise alignment of each ply. Available in one-roll, two-roll, three-roll, six-roll with cart, or flat fold configurations, the Power Feed continuously supplies material for the length of marker or until the roll is consumed. Automatic edge control included Available in mirror image or standard configuration Optional two-roll, heavy-duty version available (not shown) See download attachment for more details Width 78 in. (2.0 m) 84 in. (2.1 m) 96 in. (2.4 m) 108 in. (2.7 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. Standard Weight Capacity 1,500 lbs. (680 kg) Maximum Roll Diameter 30 in. (76 cm) Power Requirements 110V at 15 amps, 1 ph 220V at 8 amps, 1 ph
