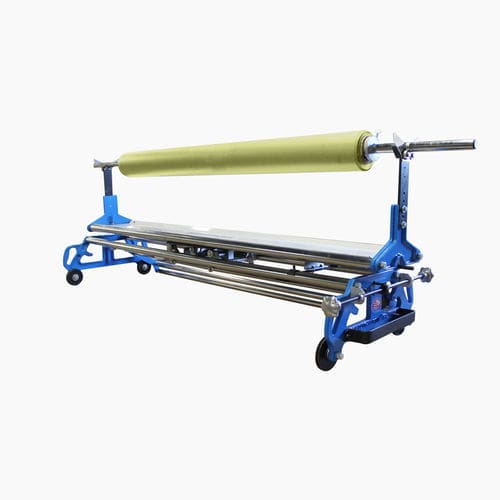

The Turntable is a lightweight easy-to-use spreader. When positioned at the end of a cutting table, the material is manually spread across the table. The maneuverable spreader adjusts for face-up-one way, face-to-face-nap-one-way and face-to-face spreading. To improve efficiency when spreading face-up-one way, a guided Long-Handled Chickadee rotary shear (not attached) can be added to end cut each ply with perfect accuracy.
Manual edge control
1.25 in. (3.175 cm) Frozen Cloth Bar with Cones
Table must be 6 inches (15.2cm) wider than Turntable
Optional Features
Long-Handled Chickadee Cut Off (option – not attached)
Additional Lifter Arms
Double Uprights (includes cloth bar)
Cloth Weights
Spread Height - Maximum
9 in. (22.9 cm) 15 in. (38.1 cm) – optional
Roll Weight - Maximum
150 lbs. (68kg)
Roll Diameter - Maximum
24 in. (61cm)
Roll Width
48 in. – 72in. standard (122cm – 183cm) Contact the factory for custom sizes in 6 in. (15.2cm) increments.
Machine Weight
75 lbs. (34kg)
