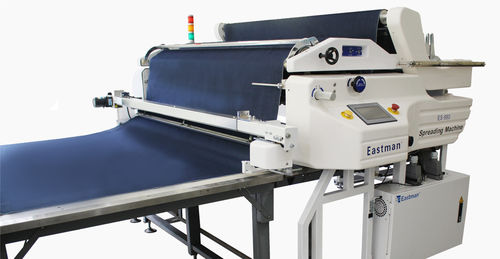

Spreading machine with cutting system ES-980 series

spreading machine with cutting system
spreading machine with cutting system
spreading machine with cutting system
Add to favorites
Compare this product


Characteristics

Options
with cutting system

Description

The Eastman ES-980 Series Spreading System is suitable for all types of woven fabrics, and offers multiple functions for fast and easy spreading heights up to 7.9” (20cm). Available in several sizes, the ES-800 is the perfect solution for accurate spreads. Spread one-way (face-up) or zig zag (face-to-face) One-man operating Dual material feeding to eliminate stretching Static eliminator Special cloth bar to remove air from nylons Good for woven fabrics Two-way catcher for dual-way spreading Auto cutting control Auto edge alignment Auto Up & Down control Spreading Width - Max ES-800/6 ft. – 64 in. (1635mm) ES-880/7 ft. – 76 in. (1935mm) ES-880/8 ft. – 88 in. (2255mm) Table Width ES-660/6 ft. – 72 in. (1830mm) ES-660/7 ft. – 84 in. (2130mm) ES-660/8 ft. – 96 in. (2430mm) Spreading Speed 106 yard/min. (97m/min) Maximum Spread Height 7.87 in. (20 cm) Pass through Height 9.05 in. (23cm) Spread Length Accuracy .11 in. (+/- 3mm) Edge Alignment Accuracy .07 in. (+/- 2mm) Roll Diameter - Maximum 20 in. (50 cm) Roll Weight Capacity 265 lbs. (120 kg) Separate side electrical control cabinet- dustproof with easy access forinspection and maintenance • Folded Operator Riding Platform • Left or right hand controls • Type of Spreading mode input • Guide wheel encoder • Rack and pinion drive edge alignment • Auto edge alignment • Auto up and down elevator control • Knife box • Auto cutting control • Auto pitcher elevator • Emergency stop control • Auto material feeding • Out of cloth sensor • Object sensors • Pull cord (operator side mounted,non-operator side optional)

Catalogs

No catalogs are available for this product.

See all of Eastman Machine Company‘s catalogs
