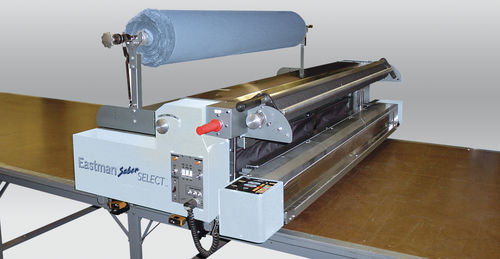

The Eastman Saber Select™ positive feed system is designed for spreading rolls of material with weights up to 500 or 800 lbs. (227/363 kg).
Available in both semi-automatic and manual modes, the Select system features electric edge control and up to 80 yards/minute of spreading capabilities.
Variable positive feed, with electro-magnetic clutch engagement.
Solid state drive with dynamic braking
Heavy duty 3/4HP drive
Ergonomic speed controller with built in direction switch.
Guided cut-off knife with motorized elevator lift
Table guided (no track required)
Four poly wheels on table (2 wheel drive)
Electric edge control
Heavy duty welded steel construction
Heavy duty cloth bar with cones
Available in left or right hand configuration
options
Motorized knife box
End catchers with tuck blade assembly
Track wheels
Turntable
Expandabar
Flat fold attachment
Custom material width capacities available in 6″ (15.24 cm) increments.
Floor mounted riding platform
Spreading Modes
Face-up
Face-to-face
Roll Weight - Maximum
500 lbs. (227 kg) 800 lbs. (363 kg) optional
Roll Diameter - Maximum
28 in. (71 cm)
Material Width
66 – 72 in. (168-183cm) Custom working widths available upon request.
Spread Height
6 in. (15.2 cm)
Spreading Speed
80 yards / min. (73m / min)
Power Requirements
110V 220V
