Interior floor sandwich panel DrumAcoustic

for ship partition wallscorkrubber

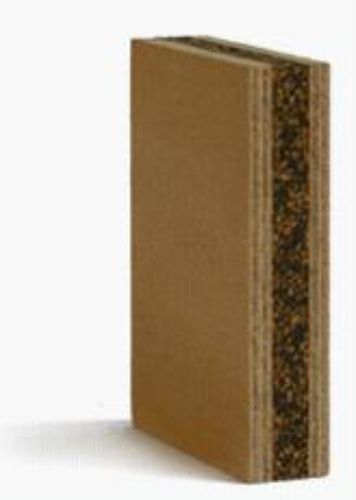

Our sandwich panels are made up of panels with ocouméplex throughout and a core of: - DrumAcoustic 2150 / Heavy solid rubber (EPDM, PVC free) (2150 kg/m³) - DrumAcoustic 1050 / Rubber (1050 kg/m³) - DrumAcoustic 550 / Light composed with cork/rubber (550 kg/m³) - DrumAcoustic 225 / Ultra Light composed with cork layer (225 kg/m³) These materials dampen vibration before it is radiated as sound and transferred to other system components. Usually used in sandwich with plywood, but can also be glued with aluminum or steel. The acoustic sandwich panels are often used for floors and partition walls. Noise reduction measurements are in accordance with ISO 140-3. All panels are available with square edges, grooved (on 4 sides) or with an overlap of 30, 40, 50 or 60 mm on all sides. - Material: Acoustic sandwich panel - Available size: 2490 x 1210 mm or 2490 x 600 mm (other dimensions on request) - Connection: Square edges, grooved and plywood keyway or with overlap (30/40/50 or 60 mm cut-out on all four edges) - Available thickness: 11 mm – 26 mm - Surface: Rough or painted - Noise reduction: ISO 140-3 compliant - Core options: DrumAcoustic 2150, 1050, 550, 225 (see above for details)
