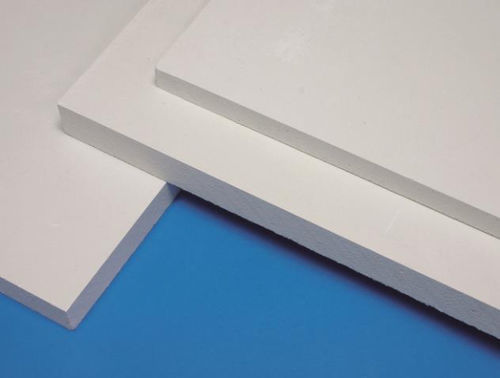

Ship partition wall panel PROMARINE®-PX1

for ship ceilingsfor fire protectionfor ship fittings

Product Details Non-combustible mineral bound calcium silicate board, formulated without asbestos, with excellent fire performance; ideal for installation and application in the marine market for non-combustible, B15 & C Class divisions. Promat PROMARINE®-PX1 is a new generation of non-combustible mineral-bonded boards that use the innovative PROMAXON® technology. Promat PROMARINE®-PX1 offers superior strength, insulation and stability and is available in thicknesses of 12, 15, 19, 22 and 25 mm. When glued with high pressure laminates, Promat PROMARINE®-PX1 can be installed as cladding, partitions and ceilings on seagoing vessels and offshore platforms. Advantages and main features - Superior fire performance thanks to the dual cooling effect of PROMAXON® technology - Improved surface finish – smooth, consistent surface finish - Cost effective – competitive installed system costs - Full technical support from Promat’s technical team - Flexibility – suitable for bonding with high pressure laminates - Health and Safety – Not classified as a hazardous or hazardous product - Improved workability – easy to edit, cut and repair - 2440 mm and 3050 mm plank lengths Technical Specifications - Designation: Mineral bound calcium silicate board - Colour: White - Thickness: 12, 15, 19, 22, 25mm - Density: 750kg/m3 ± 10% (2440x1220mm), 800kg/m3 ± 10% (3050x1220mm) - Dimensions: 2440x1220mm, 3050x1220mm - Specific heat capacity: 1.03kJ/kg K - Thermal conductivity at 20°C: 0.189W/mK - Alkalinity (approx.) pH: 9 - Nominal moisture content %: 1-2 - Flexural strength rupture (N/mm2) longitudinal (dry): 3.0 - Compressive strength (perpendicular to board face) N/mm2 (dry): 4.7 - Reaction to Fire Marine Equipment directive 96/98, am: Certificate n° WCL MED164.108/1121/0226TE - Fire Resistance Marine Equipment directive 96/98, amen: Certificate n° WCL MED164.108/1121/220TE - Quality assurance Module D: Certificate n° WCL MED164.108/1121/0227QA - Acoustic performance – ISO 10140/3 and ISO 717/1: See page 4 - Waste disposal: Refer to local legislation. – If not available: The board is not classified as a dangerous substance and so no special provisions are required regarding the carriage and disposal. - Storage: Store on flat surface, in a dry area Note: WCL MED164.108 / 1121 / 0226TE is valid for C spline, solid spline and omega joints.
