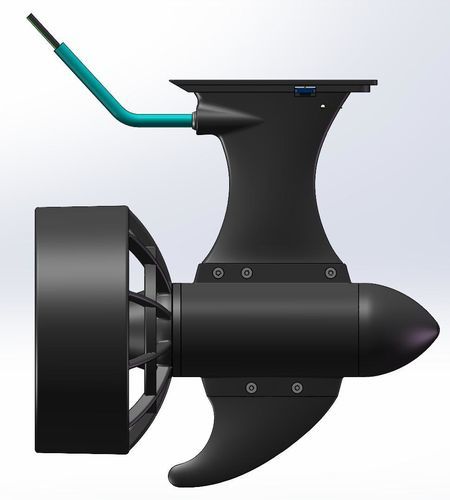

Kayak pod drive ePOD-1.0

SUPfishing boatdinghy

Product Brief
The ePOD-1.0 Electric SUP Thruster is a lightweight electric propulsion system designed for stand-up paddleboards (SUPs), inflatable kayaks, fishing boats and small rowboats. The unit uses a hard-anodized aluminum alloy housing for seawater corrosion resistance. Weighing 1.8 kg, it is easy to carry and install. The integrated high-efficiency brushless motor with built-in controller minimizes wiring, reduces power loss and improves thermal performance. The dynamically balanced plastic propeller reduces vibration and noise.

Performance Options
Option A: 15 kgf thrust / top speed 4.5 km/h
Option B: 23 kgf thrust / top speed 7.5 km/h
Both options support boat loads of 45–85 kg, feature IP68 waterproofing, and are compatible with freshwater and seawater environments. Suitable for recreational fishing, short-distance water transport and outdoor water sports.

Applications

• Stand-Up Paddleboards (SUP): suitable for recreational and touring paddleboards.
• Kayaks & Small Dinghies: fits single- and double-person kayaks and small rowboats.
• Fishing Boats: for cruising and maneuvering on fishing vessels.
• Water Environments: optimized for freshwater and seawater use.

Technical Specifications
Input Voltage: 24V — 24V
Max Input Current: 25A — 60A
Max Thrust: 15 kgf — 23 kgf
Max Motor RPM: 1100 rpm — 1400 rpm
Matching Speed: 4.5 km/h — 7.5 km/h
Matching Boat Weight: 45-85 kg — 45-85 kg

Structural Parameters
Water Environment: Freshwater / Seawater
Waterproof Grade: IP68
Dimension (D×H): 441 × 82 × 248 mm
Total Weight: 1.8 kg
Housing Material: Aluminum Alloy (Hard Anodized)
Maintenance Interval: 150 Hours

Product Features

• Lightweight & Corrosion-Resistant Housing: aluminum alloy with hard-anodized surface for seawater resistance and portability (1.8 kg).
• High-Efficiency & Heat-Resistant Motor: high-magnetic-density, high-temperature-resistant magnets for improved power density and thermal performance.
• Low-Vibration Propeller: high-strength engineering plastic propeller with dynamic balancing to minimize vibration and noise.
• Integrated Built-In Controller: short, internal wiring reduces power loss and heat generation, simplifying installation.
• IP68 Waterproof Rating: supports continuous immersion and reliable operation in various aquatic environments.

caractéristiques / spécifications techniques

• Model: ePOD-1.0
• Brand: Hobiba
• System Types: Pod Drive
• Kv: <100
• Controller Type: Sensorless
• Maximum Voltage: 60V
• Maximum Continuous Current: <120A
• Input Voltage (both variants): 24V
• Max Input Current: Model 1 = 25A; Model 2 = 60A
• Max Thrust: Model 1 = 15 kgf; Model 2 = 23 kgf
• Max Motor RPM: Model 1 = 1100 rpm; Model 2 = 1400 rpm
• Matching Speed: Model 1 = 4.5 km/h; Model 2 = 7.5 km/h
• Matching Boat Weight: 45-85 kg
• Water Environment: Freshwater / Seawater
• Waterproof Grade: IP68
• Dimension (D×H): 441 × 82 × 248 mm
• Total Weight: 1.8 kg
• Housing Material: Aluminum Alloy (Hard Anodized)
• Maintenance Interval: 150 Hours
