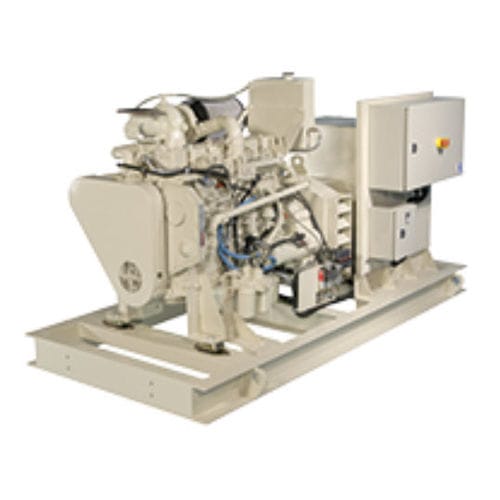

Diesel generator set 6B-CP C
for ships60 Hz50 Hz

diesel generator set
diesel generator set
Add to favorites
Compare this product


Motor type
Application domain
for ships
50 Hz, 60 Hz
Options and accessories
with alternator, emergency
Output power

Min.: 74 kW (100.6 hp)

Max.: 99 kW (134.6 hp)

Power in kVA

Min.: 93 kVA (126.44 hp)

Max.: 124 kVA (168.59 hp)


Min.: 380 V

Max.: 480 V


2,240 mm (88.2 in)


1,250 mm (49.2 in)


1,270 mm (50 in)

Net weight

1,270 kg (2,800 lb)


World-class Cummins diesel engines matched to industry-leading Cummins alternators. Designed, integrated and assembled for optimal efficiency and performance Engineered for the tough demands of the marine environment with superior durability and high uptime requirements Simplified vessel integration with less complex mechanical connections Available with multi-station alarm and monitoring panels via a local digital network to match application requirements Integrated alarm system can be configured to communicate with ship’s central data systems Flexible configurations available to customize the generating set to the vessel’s operating requirements Comprehensive warranty applies to entire generating set and is valid globally Packaged at G&M Tex Ltd in Ipswich, U.K. Engine Features Rugged in-line, six cylinder turbocharged diesel engine with mechanical fuel system provides excellent fuel economy and low maintenance requirements. Optional electronic speed governor Available with heat exchanger, keel cooler or set-mounted radiator Radiator configurations fitted with an independent start system not dependent on ship’s start systems or “changing out starter” methods Conforms to SOLAS surface temperature requirements and classifiable for Unmanned Machinery Space (UMS) applications as defined by IACS society rules Classification Society type approvals available Classed level units fitted with superior aluminum extruded wiring harness, duplex filtration and type-approved hardware Alternator Features 12 wire, 3-phase alternator provides a broad range of re-connectable outputs Designed specifically for marine applications with an IP23 rating
