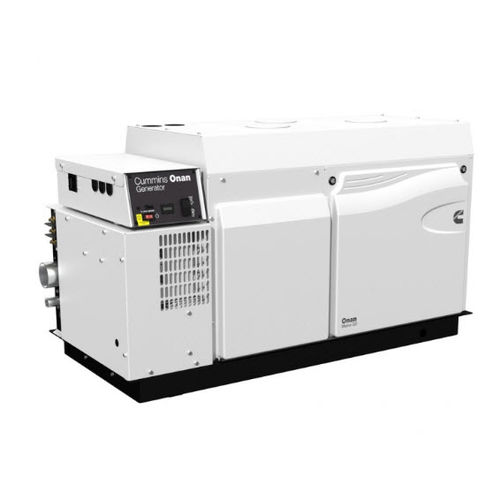

Diesel generator set MDKDT/U/S
for boats50 Hz60 Hz

diesel generator set
diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Application domain
for boats
Frequency
50 Hz, 60 Hz
Output power

22.5 kW, 27 kW, 29 kW
(30.6 hp, 36.7 hp, 39.4 hp)

Power in kVA

Min.: 22.5 kVA
(30.59 hp)

Max.: 36.2 kVA
(49.22 hp)

Voltage

Min.: 110 V

Max.: 380 V

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Number of cylinders

4 unit

Length

1,358 mm
(53.5 in)

Width

622 mm
(24.5 in)

Height

761 mm
(30 in)

Net weight

601 kg, 626 kg
(1,325 lb, 1,380 lb)

Description

The Cummins Onan Digital Display provides user-friendly diagnostics including extensive engine and alternator information and more Largest worldwide certified Distributor/Dealer support network in the industry The optimized mounting system greatly reduces vibration Electronic frequency control - a must for digital appliances and computers requiring quality power Cummins Onan marine generator sets are emissions certified to U.S. Environmental Protection Agency (EPA) emission standards More than 90 years of marine experience stand behind every Cummins Onan Marine generator set 4-cylinder, 4-stroke, water-cooled marine diesel with Denso ND-PFR4M mini fuel pump Available with SAE J-1939 CAN data link for monitoring generator set status and diagnostics for engine and alternator Certified by Lloyd's Register for marine, offshore and industrial applications
