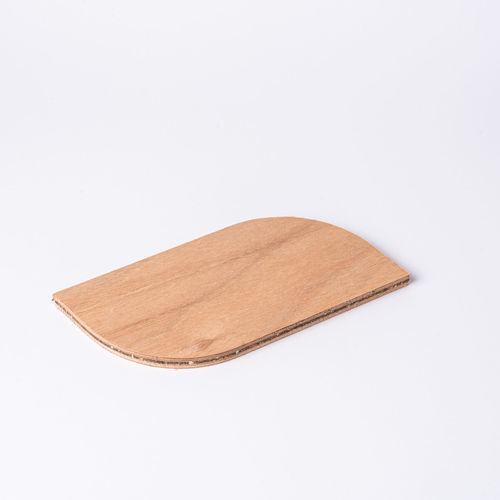

Ship partition wall sandwich panel Polyphon

soundproofingfor ship floorsfor ship fittings

Polyphon is the panel that guarantees an optimal weight/sound insulation ratio for use on board. This product is particularly suitable for making the parts that most need to isolate noise on board luxury boats where a notable degree of comfort is required. Applications: Flooring, dunnage, cabins, soundproof boxes, load-bearing and divisional compartments. - Optimal 30dB sound insulation - Excellent durability in environments with high humidity levels - Excellent dimensional stability - Easily workable - Possibility of custom composition upon customer request - Supplied already squared to standard or custom dimensions upon customer request - Composed of external faces of Okoumè marine plywood - Standard core in 3 mm cork rubber sheath available in 2 densities 680 or 965 kg/m³ - On request, sheath available in 4 mm and 6 mm with the same densities - CF bonding with Single-component polyurethane glue with 0 formaldehyde emissions - Possibility of applying high density sound insulating sheath for use of the dunnage panel Technical characteristics / specifications: - Product type: Nautical sandwich panel with high soundproofing power - Sound insulation: 30dB - Durability: Excellent in high humidity environments - Dimensional stability: Excellent - Workability: Easy - Customization: Possible on request (composition and dimensions) - External faces: Okoumè marine plywood - Core: Cork rubber sheath, standard 3 mm (densities: 680 or 965 kg/m³), also available in 4 mm and 6 mm - Bonding: Single-component polyurethane glue, 0 formaldehyde emissions - Additional options: High density sound insulating sheath for dunnage panel
