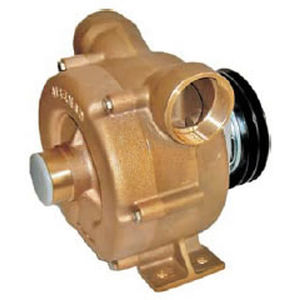

Boat pump SPECIAL 070 FM

transferwateroil

Bidirectional self-priming pumps with side liquid ring widely used in the nautical sector to empty bilges, for fire-fighting equipment, washing of chains and transfer of liquids such as: fresh water, sea water, diesel-oil etc. Available with pulley or bare shaft (SPECIAL Type), or with electro-magnetic clutch (SPECIAL FM Type). CONSTRUCTION FEATURES Pump body: BRONZE Impeller: BRONZE Pipe fittings: BRONZE Shaft : AISI 316 stainless steel Reversible mechanical seal: CERAMICS-GRAPHITE–NBR SCOPE Liquid free of solid impurities Temperature range of the liquid: from +0 to +70 °C. Max. suction depth: 6 m. ACCESSORIES ON REQUEST Abrasion-proof mechanical seals for high temperature made in VIDIA-VITON (max. 150°C)
