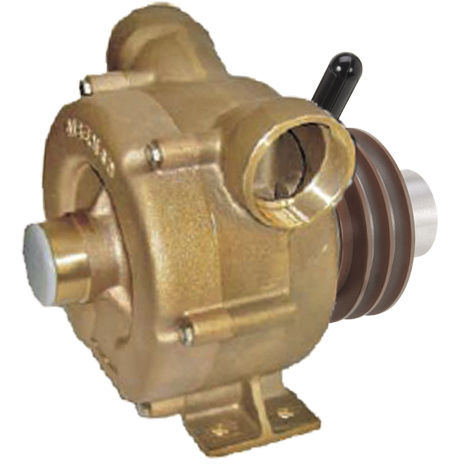

Boat pump NAUTIC 070 Ftransferoilfuel
Add to favorites
Compare this product
Characteristics
- Application domain
- for boats
- Applications
- transfer
- Fluid
- oil, fuel
- Operation
- manual, belt-driven
- Other characteristics
- self-priming
- Flow rate
500 l/min
(132.09 us gal/min)- Pressure
6 bar
(87 psi)- Weight
25.3 kg
(55.8 lb)
Description
Bidirectional self-priming pumps with side liquid ring, widely used in the nautical sector to empty bilges and transfer liquids such as: fresh water, sea water, gas-oil etc.
Available with pulley or bare shaft (NAUTIC Type), or with manual clutch (NAUTIC F Type).
CONSTRUCTION FEATURES
Pump body: BRONZE
Impeller: BRONZE
Pipe fittings: BRONZE
Shaft : AISI 316 stainless steel
Lip seals: special corrosion-proof NBR, with bronze spring
SCOPE
Liquid free of solid impurities
Temperature range of the liquid: from +0 to +70 °C.
Max. suction depth: 6 m.
ACCESSORIES ON REQUEST
Lip seals for high temperature (max. 120°C) in VITON
