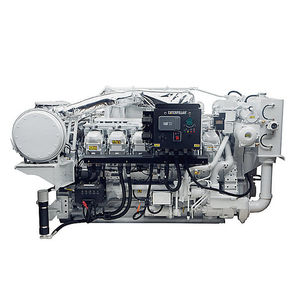

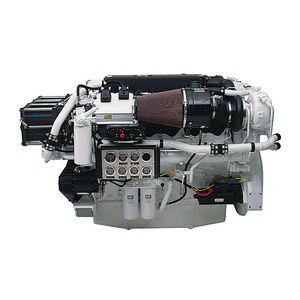

Inboard engine C12
propulsiondieselboating

inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard, propulsion
Power source
diesel
Market
boating, professional vessel
Technology
turbocharged, direct fuel injection
Other characteristics
IMO 1
Power

Max.: 600 ch (600 hp)

Min.: 570 ch (570 hp)

Description

Cat® C12 Diesel Marine Propulsion Engines, with ratings of 578-609 mhp (570-600 bhp) at 2300 rpm, meet IMO I emission standards. The C12 takes full advantage of the electronically controlled unit injection fuel system, resulting in an environmentally friendly engine with outstanding performance and fuel economy. There is also a wide range of optional equipment available to meet the needs of your marine commercial or pleasure craft application. RATINGS Power Range - 578-609 mhp (570-600 bhp) ENGINE Speed Range - 2300 rpm Emissions - IMO I Aspiration - TA Bore - 130 mm Stroke - 150 mm Displacement - 12 l Rotation from Flywheel End - Counterclockwise Configuration - In-line 6, 4-Stroke-Cycle Diesel DIMENSIONS & WEIGHTS Height - 1005 mm Length - 1574 mm Width - 969 mm Dry Weight - 1174 kg AIR INLET SYSTEM Aftercooler - sea water; corrosion resistant, Air Cleaner/Fumes Disposal (closed system), Turbocharger, Jacket Water Cooled CONTROL SYSTEM Electronic governing, Cold mode start strategy, Power compensation for fuel temperature, Programmable low idle, Electronic diagnostics and fault logging, Engine and transmission monitoring (speed, temperature, pressure), Fuel/air ratio control, Emergency stop switch (A&B ratings only) COOLING SYSTEM Thermostat and housing, Jacket water pump; gear driven, Sea water pump; rubber impeller; self-priming; gear-driven, Integral heat exhanger/expansion tank; removable tube bundle; replaceable copper-nickel tubes, Keel cooling - combined circuit (includes pipe thread flange kit) EXHAUST SYSTEM Watercooled Manifold & Turbocharger FLYWHEELS & FLYWHEEL HOUSINGS Flywheel; SAE No. 1; 113 teeth, Flywheel housing; SAE No. 1 (10 degree slant pad), SAE standard rotation
