LED dock light C03-000112

solar

Overview

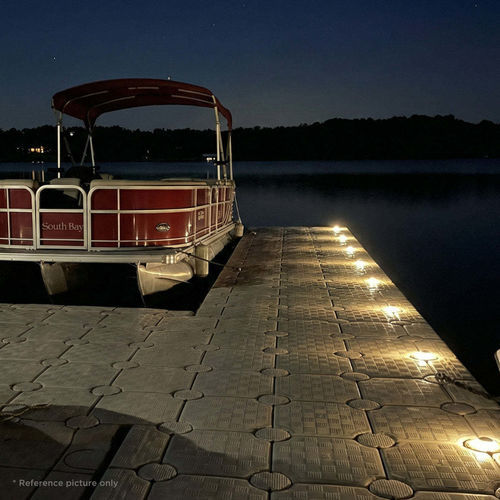

Candock solar path light model C03-000112 provides low-level solar illumination for docks, pontoons and gangways. Designed to integrate with Candock modular systems, it installs quickly and operates autonomously using a 0.3 W solar panel and a 1200 mAh battery. The luminaire delivers sixteen 0.2 W LEDs for uniform, low-glare lighting. Its die-cast aluminum body and polycarbonate lens are specified for marine exposure and pedestrian loadability up to 2,000 lbs.

FAQ

• Can these lights be installed on a gangway? Yes. The lights can be mounted on a gangway; however the included hardware is not intended for drilling into aluminum. Use appropriate metal screws when installing on aluminum surfaces.
• What happens if someone steps on the light? Are they strong? The housing is die-cast aluminum and the base is engineered for pedestrian loads. Each unit supports loads up to 2,000 lbs when correctly mounted.

Technical specifications

• Material / Composition: Die casting aluminum and polycarbonate
• Battery: 1200 mAh
• LED output: 0.2 W × 16 LEDs
• Solar panel: 0.3 W
• SKU: C03-000112
• Load capacity: up to 2,000 lbs
• Mounting note: included hardware not suitable for drilling into aluminum; use appropriate metal screws for aluminum surfaces
