Boat mooring cleat C03-000085

singleretractablehigh-density polyethylene (HDPE)

Product overview

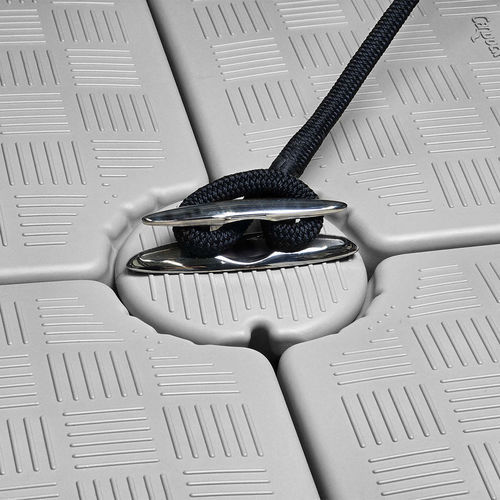

This minimalist cleat is designed to sit flush with dock surfaces to keep walkways smooth and unobstructed. When not deployed, the cleat retracts cleanly, leaving only a low-profile bump that reduces tripping hazards and preserves the dock’s appearance.

Operation
Pull the cleat up to deploy and secure your boat in seconds. Retracts easily when not in use for a neat, uncluttered deck or dock surface.

Construction & suitability
Components use marine-grade 316 stainless steel and high-density polyethylene (HDPE) where applicable, providing strong corrosion resistance for marine and saline environments. Rated for boats up to approximately 5,000 lb (≈25 ft) and mounted on a single assembly bolt for fast installation and repositioning.

Additional product details

• Low-profile retractable cleat design to minimize tripping hazards and keep dock surfaces unobstructed
• Quick deployment: pull up and secure; retracts when not required
• Single assembly-bolt mounting for easy repositioning
• Suitable for saltwater environments due to 316 stainless steel components

Specifications
Material/Composition: High-density polyethylene resin (HDPE) and stainless steel 316
Available colors: Beige and Grey
Safe Working Load: 680 kg (1,500 lbs)
Recommended boat capacity: up to 5,000 lb (approx. 25 ft)
Mounting: single assembly bolt (easy repositioning)
Installation tool: manual key for G2 pin

FAQ highlights

• Is it suitable for installation in a saline environment? Yes — constructed from 316 stainless steel, components offer high corrosion resistance suitable for saltwater use.
• Do I need any special tools to install it myself? The only special tool referenced is a manual key for the G2 pin.

Technical specifications

• Material/Composition: High-density polyethylene resin (HDPE) and 316 stainless steel
• Available colors: Beige; Grey
• Safe Working Load: 680 kg (1,500 lbs)
• Recommended boat capacity: up to 5,000 lb (approx. 25 ft)
• Mounting: single assembly bolt (easy repositioning)
• Installation tool: manual key for G2 pin
• SKU (Beige): C03-000085
• SKU (Grey): C03-000086
