Ship vacuum pump 101 PBOfor shipyardswateroil
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Application domain
- for ships, for shipyards
- Fluid
- water, oil
- Operation
- electric
- Voltage
- 12 V, 24 V
- Protection level
- ATEX
- Flow rate
100 m³/h, 120 m³/h
(3,531.47 ft³/h, 4,237.76 ft³/h)- Pressure
Max.: 10 bar
(145 psi)Min.: 0.5 bar
(7.3 psi)- Weight
82 kg
(180.8 lb)- Height
437 mm
(17 in)- Length
707 mm
(28 in)- Width
366 mm
(14 in)
Description

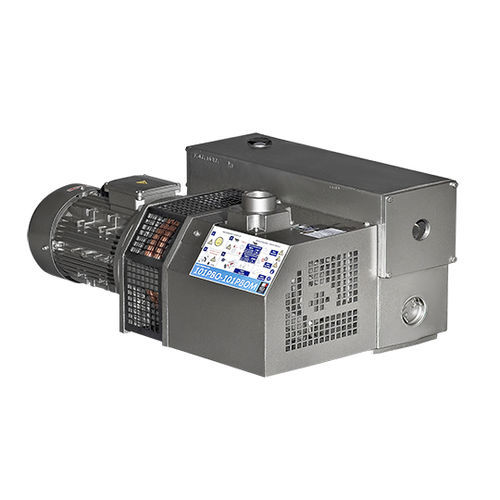

Cast iron pumping unit coupled to the electric motor via a flexible coupling. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid
Special voltages: available.
Catalogs
No catalogs are available for this product.
See all of Bgs General Srl‘s catalogsOther Bgs General Srl products
Oil-Lubricated Rotary Vane Vacuum Pumps – PBO/PBOM SERIES
