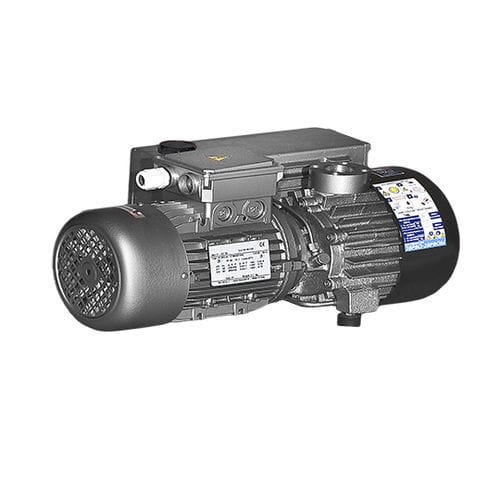

Ship vacuum pump 28 PBOfor shipyardsfor waterfor oil
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Application domain
- for ships, for shipyards
- Fluid
- for water, for oil
- Operation
- electric
- Voltage
- 12 V, 24 V
- Protection level
- ATEX
- Flow rate
28 m³/h, 33 m³/h
(988.81 ft³/h, 1,165.38 ft³/h)- Pressure
Max.: 10 bar
(145 psi)Min.: 0.5 bar
(7.3 psi)- Weight
25 kg
(55.1 lb)- Height
250 mm
(10 in)- Length
421 mm
(17 in)- Width
194 mm
(8 in)
Description
Cast iron compressor pump coupled directly to the electric motor. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling. First oil filling included.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F32® non-toxic synthetic fluid
Catalogs
No catalogs are available for this product.
See all of Bgs General Srl‘s catalogsOther Bgs General Srl products
Oil-Lubricated Rotary Vane Vacuum Pumps – PBO/PBOM SERIES
