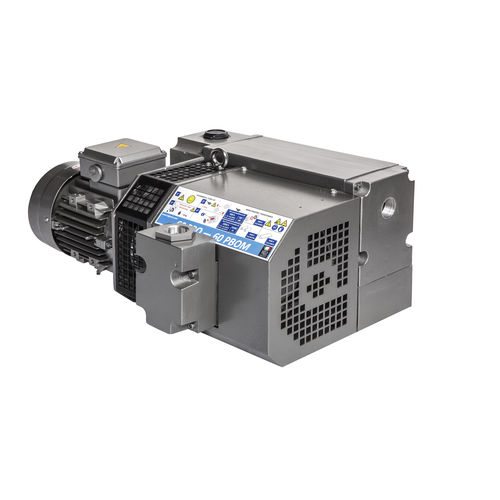

Ship vacuum pump 61 PBOfor shipyardsfor waterfor oil
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Application domain
- for ships, for shipyards
- Fluid
- for water, for oil
- Operation
- electric
- Voltage
- 12 V, 24 V
- Protection level
- ATEX
- Flow rate
60 m³/h, 72 m³/h
(2,118.88 ft³/h, 2,542.66 ft³/h)- Pressure
Max.: 10 bar
(145 psi)Min.: 0.5 bar
(7.3 psi)- Weight
49.5 kg
(109.1 lb)- Height
206 mm
(8 in)- Length
595 mm
(23 in)- Width
273 mm
(11 in)
Description
Cast iron pumping unit coupled to the electric motor via a flexible coupling. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid
Special voltages: available.
Catalogs
No catalogs are available for this product.
See all of Bgs General Srl‘s catalogsOther Bgs General Srl products
Oil-Lubricated Rotary Vane Vacuum Pumps – PBO/PBOM SERIES
