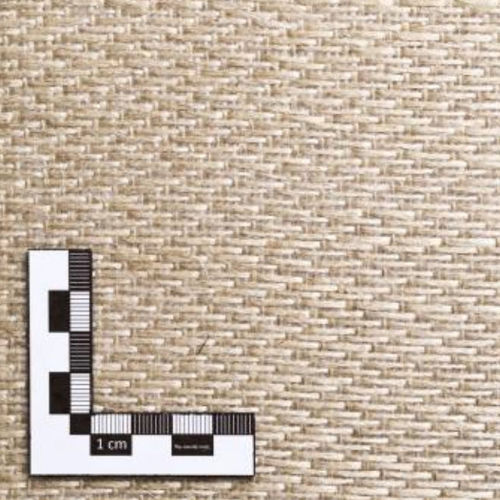

Flax fiber composite fabric 5031
biaxial

flax fiber composite fabric
flax fiber composite fabric
Add to favorites
Compare this product


Characteristics

Fiber
flax fiber
Type
biaxial

Description

Product description Bidirectional fabric with fibers oriented at 0° and 90°, suitable for manufacturing fiber reinforced composite products with a high performance and a low environmental impact. ampliTex® 5031 has a very good drapability and is ideal for complex shapes. High laminate stiffness is obtained due to the low crimp satin weave. Performance advantage Considering that glass fibers have a density of 2600 kg/m3 and a tensile modulus of 70 GPa, the flax ampliTex® 0°/90° 200 gsm can replace a 330 gsm glass fiber 0°/90° fabric to have the same stiffness in tension. In compression, the performance of flax is a bit lower, thus the flax ampliTex® 0°/90° 200 gsm can replace a 275 gsm glass fiber 0°/90° fabric to have the same stiffness. Processing guidelines • Great compatibility with epoxy and polyester • Near zero CTE, hence good processing compatibility with carbon fibres • Compatible with infusion based processes (vacuum infusion, RTM), wet layup, bladder inflation moulding (BIM) and compression moulding • Flax fibres always contain some humidity at ambient conditions. Some resins (especially polyesters) are sensitive to moisture and may badly polymerize or create bubbles. In that case, dry the fabrics before use (110°C for 15 minutes) • Fibre weight fraction of 50% can be reached with process pressure > 5 bars. However, the fibres absorb a lot of resin when hand-laminating the fabric and it tends to look “dry” (unless too much resin is used) before pressure is applied. We recommend controlling the amount of adhesive used for laminating and impregnating it with 50 to 60% resin in weight. Excess resin comes out while pressing the fabric.
