Sailboat ring B series
roundstainless steel

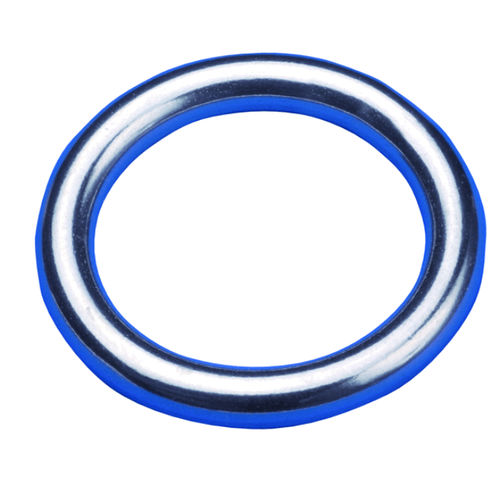

Sailboat ring - B series - Bainbridge international - round / stainless steel
Sailboat ring - B series - Bainbridge international - round / stainless steel
Add to favorites
Compare this product

Characteristics

Applications
for sailboats
Type
round
Other characteristics
stainless steel

Description

Product overview
  • Manufactured from Type 316 stainless steel and chemically passivated after welding to minimise the risk of staining.
  • TIG welded to maximise strength.
  • Design note: smaller inside-diameter rings with the same bar diameter can deform at higher loads, although tensile strength remains similar.


Variants
Part No. | Name | Bar Diameter | Inside Diameter | Pack Qty | Safe Working Load | Weight | Unit
  • B117 — Rings 30mm x 6mm welded 316 stainless steel | Bar Diameter: 6.3 MM | Inside Diameter: 32 MM | Pack Qty: 10 | Safe Working Load: 600 KG | Weight: 28 | Unit: EACH
  • B118 — Rings 30mm x 5mm welded 316 stainless steel | Bar Diameter: 4.8 MM | Inside Diameter: 32 MM | Pack Qty: 10 | Safe Working Load: 150 KG | Weight: 16 | Unit: EACH
  • B119 — Rings 40mm x 6mm welded 316 stainless steel | Bar Diameter: 6 MM | Inside Diameter: 40 MM | Pack Qty: 10 | Safe Working Load: 400 KG | Weight: 35 | Unit: EACH
  • B121 — Rings 45mm x 8mm welded 316 stainless steel | Bar Diameter: 7.9 MM | Inside Diameter: 44 MM | Pack Qty: 10 | Safe Working Load: 900 KG | Weight: 64 | Unit: EACH
  • B214 — Rings 25mm x 5mm welded 316 stainless steel | Bar Diameter: 4.8 MM | Inside Diameter: 25 MM | Pack Qty: 10 | Safe Working Load: 300 KG | Weight: 14 | Unit: EACH
  • B219 — Rings 40mm x 8mm welded 316 stainless steel | Bar Diameter: 7.9 MM | Inside Diameter: 38 MM | Pack Qty: 10 | Safe Working Load: 750 KG | Weight: 57 | Unit: EACH
  • B220 — Rings 50mm x 8mm welded 316 stainless steel | Bar Diameter: 7.9 MM | Inside Diameter: 51 MM | Pack Qty: 1 | Safe Working Load: 550 KG | Weight: 71 | Unit: EACH
  • B221 — Rings 50mm x 9mm welded 316 stainless steel | Bar Diameter: 9.3 MM | Inside Diameter: 51 MM | Pack Qty: 1 | Safe Working Load: 1000 KG | Weight: 106 | Unit: EACH
  • B225 — Rings 50mm x 11mm welded 316 stainless steel | Bar Diameter: 11.1 MM | Inside Diameter: 51 MM | Pack Qty: 1 | Safe Working Load: 2300 KG | Weight: 149 | Unit: EACH
  • B227 — Rings 25mm x 6mm welded 316 stainless steel | Bar Diameter: 6.3 MM | Inside Diameter: 25 MM | Pack Qty: 10 | Safe Working Load: 800 KG | Weight: 21 | Unit: EACH


Technical specifications
  • Material: Type 316 stainless steel, chemically passivated after welding.
  • Welding: TIG welded to provide maximum joint strength.
  • Corrosion resistance: Passivation reduces the risk of post-weld staining.
  • Design note: Rings with smaller inside diameter and the same bar diameter may show increased deformation under high load while maintaining similar tensile strength.
  • Available variants (part number — dimensions / SWL / pack qty / weight):
    • B117 — 30mm x 6mm — SWL 600 KG — Pack 10 — Weight 28
    • B118 — 30mm x 5mm — SWL 150 KG — Pack 10 — Weight 16
    • B119 — 40mm x 6mm — SWL 400 KG — Pack 10 — Weight 35
    • B121 — 45mm x 8mm — SWL 900 KG — Pack 10 — Weight 64
    • B214 — 25mm x 5mm — SWL 300 KG — Pack 10 — Weight 14
    • B219 — 40mm x 8mm — SWL 750 KG — Pack 10 — Weight 57
    • B220 — 50mm x 8mm — SWL 550 KG — Pack 1 — Weight 71
    • B221 — 50mm x 9mm — SWL 1000 KG — Pack 1 — Weight 106
    • B225 — 50mm x 11mm — SWL 2300 KG — Pack 1 — Weight 149
    • B227 — 25mm x 6mm — SWL 800 KG — Pack 10 — Weight 21
