Electronic level switch AI.Hydro.00

for boatfor shipsfor storage tanks

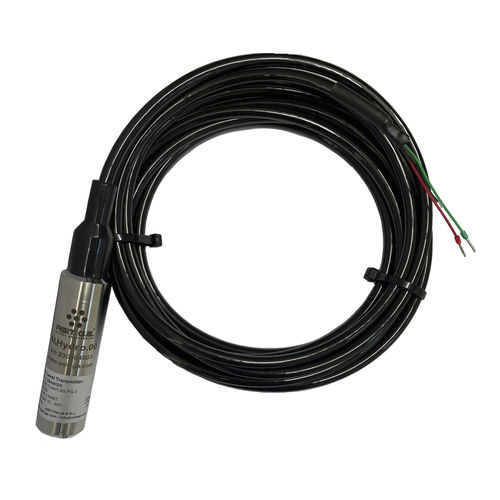

AI.Hydro.00 is a submersible level transmitter designed to provide stable and precise hydrostatic measurements in a wide range of applications, from drinking water treatment to environmental monitoring. Thanks to its high-quality silicon piezoresistive sensor protected by a robust stainless steel housing, it ensures long-term reliability even during prolonged immersion.

Why choose AI.Hydro.00?
Certified for Drinking Water: Approved pursuant to Ministerial Decree No. 174 of April 6, 2004, it is officially suitable for use in systems for the collection and distribution of water intended for human consumption.
Advanced Technology: Equipped with a temperature-compensated piezoresistive sensor, it offers accuracy up to +/- 0.25% FSO.
Maximum Connectivity: Supports standard industrial protocols such as 4-20mA, RS485, and HART protocol. It is also programmable via a dedicated modem and smartphone app.
Rugged and Waterproof Design: Stainless steel construction (316L for the membrane) with IP68 protection and PUR cable with integrated vent tube for atmospheric pressure compensation.

Ideal Applications
Level control in wells and drinking water tanks.
Water treatment plants and water diversion projects.
Measurement of sludgy or thick liquids.

Main Technical Specifications
Measuring Ranges: From 1mH2O to 200mH2O
Output Signals: 4..20mA, 0..10V, 0..5V, RS485, HART
Accuracy: 0.25% (Typical) / 0.5% (Maximum) FSO
Wetted Materials: 316L Stainless Steel (Diaphragm), 304 Stainless Steel (Body)
Operating Temperature: -20°C to +70°C
Protection: IP68 (Probe) / IP65 (Optional Connection Box)
Power Supply: 12...36Vdc (Standard)

Recommended Accessories
For a safe and tidy installation, the BC - Connection Box (Type 1 or Type 2) is available. Made of impact-resistant PBT plastic, it includes a terminal block and cable glands, and can be wall-mounted or mounted on an Omega rail.
