Electronic level switch AI.EBar-LTfor boatfor shipsfor storage tanks
Add to favorites
Compare this product
Characteristics
- Technology
- electronic
- Application domain
- for ships, for boat
- Applications
- for storage tanks, for water tanks
Description

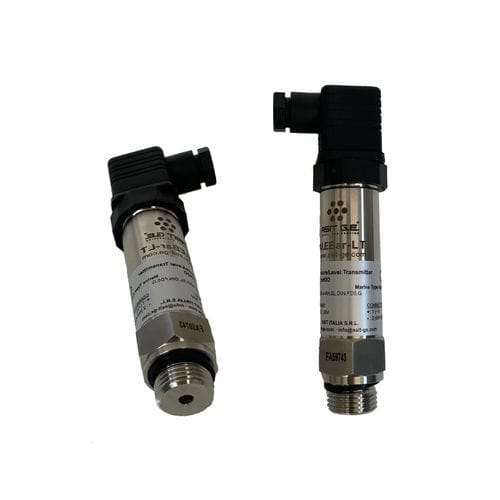

The AI.EBar-LT is a high-quality device designed for measuring the pressure of liquids and gases, even in harsh conditions. Thanks to piezo-resistive technology, it offers extremely stable, reliable, and precise measurement, making it the ideal choice for the most demanding industries.
Strengths
Maximum Versatility: Perfect for measuring tank pressure or hydrostatic head. It can handle gauge, absolute, and sealed gauge pressures.
Robust Construction: Made of premium materials such as stainless steel (AISI 316L), tantalum, or Hastelloy C, ensuring superior corrosion resistance in marine and chemical environments.
Compact and "Plug & Play" Design: Its small size facilitates installation in confined spaces, without the need for complex external programming.
RINA Naval Certification: Approved for use in the nautical sector (Certificate No. ELE141020CS), a testament to its high quality standards.
Ready for Industry 4.0: Supports the HART protocol and is programmable via a dedicated modem and smartphone app for modern and immediate management.
Main Technical Specifications
Accuracy: 0.25% FS (Full Scale).
Signal Output: 4-20 mA (available with 2-wire HART technology).
Power Supply: 12 ~ 30 VDC.
Protection Rating: IP65 (with DIN connector) or IP68 (with direct cable output).
Temperature Range: Compensated from -10°C to +70°C.
Wide Measurement Range: From 100 mbar to 100 bar.
Fields of Application
Naval Industry: Onboard system monitoring.
Chemical and Hydraulic Industries: Process control and fluid/gas storage.
Water Supply: Network and hydrostatic head management.
Connection Options
Available with both the classic DIN43650 connector for quick wiring and a direct IP68 cable outlet for applications requiring complete protection against immersion.
Strengths
Maximum Versatility: Perfect for measuring tank pressure or hydrostatic head. It can handle gauge, absolute, and sealed gauge pressures.
Robust Construction: Made of premium materials such as stainless steel (AISI 316L), tantalum, or Hastelloy C, ensuring superior corrosion resistance in marine and chemical environments.
Compact and "Plug & Play" Design: Its small size facilitates installation in confined spaces, without the need for complex external programming.
RINA Naval Certification: Approved for use in the nautical sector (Certificate No. ELE141020CS), a testament to its high quality standards.
Ready for Industry 4.0: Supports the HART protocol and is programmable via a dedicated modem and smartphone app for modern and immediate management.
Main Technical Specifications
Accuracy: 0.25% FS (Full Scale).
Signal Output: 4-20 mA (available with 2-wire HART technology).
Power Supply: 12 ~ 30 VDC.
Protection Rating: IP65 (with DIN connector) or IP68 (with direct cable output).
Temperature Range: Compensated from -10°C to +70°C.
Wide Measurement Range: From 100 mbar to 100 bar.
Fields of Application
Naval Industry: Onboard system monitoring.
Chemical and Hydraulic Industries: Process control and fluid/gas storage.
Water Supply: Network and hydrostatic head management.
Connection Options
Available with both the classic DIN43650 connector for quick wiring and a direct IP68 cable outlet for applications requiring complete protection against immersion.
Catalogs
AI.EBar-LT
5 Pages
