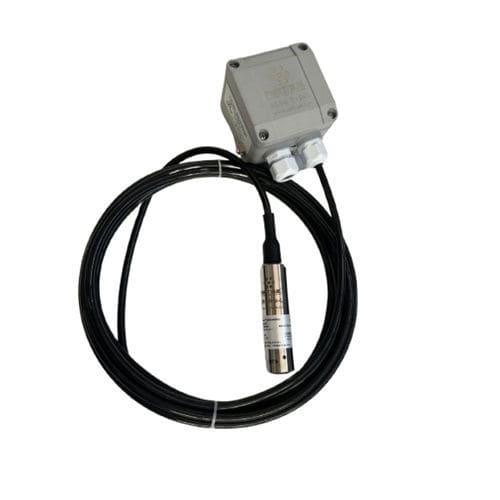

Electronic level switch AI.Hydro-LT

for boatfor shipsfor storage tanks

AI.Hydro-LT is the ideal solution for those seeking precision and maximum reliability in liquid level measurement in tanks. Designed to operate in harsh conditions, it is a completely sealed device with an IP68 rating, perfect for industrial, civil, and naval applications.

Product Strengths
Superior Accuracy: Based on piezo-resistive technology, it guarantees an accuracy of 0.25% FS and high stability (±0.2% FS/year), ensuring consistent measurements over time.
Marine Reliability: Thanks to construction materials such as stainless steel (SS304/SS316L) and an AISI 316L diaphragm, the sensor is particularly resistant to corrosion and is RINA certified for use in the naval sector.
Configuration Flexibility: Wide choice of measurement ranges (from 0-1 m to 0-50 mH2O) and various types of process connections (flanged or threaded) to adapt to any type of tank.
Smart & Connected: Supports the HART protocol and is programmable via a dedicated modem and smartphone app, facilitating remote management and diagnostics.

Main Technical Specifications
Output Signal: 4-20 mA (available with 2-wire HART technology)
Power Supply: 12 ~ 30 VDC
Cable Material: 7.5 mm PUR, suitable for prolonged immersion
Operating Range: Temperature compensated from -10°C to +70°C
Compact Dimensions: Sensor body 124 mm long and 26 mm in diameter for easy installation even in limited spaces

Fields of Application
Naval Industry: Monitoring of onboard tanks.
Water Supply: Level management in tanks and wells.
Industry: Process control and storage of fluids compatible with stainless steel.
