Professional vessel autopilot

for boatfor high-speed vesselsfor motor boats

Overview

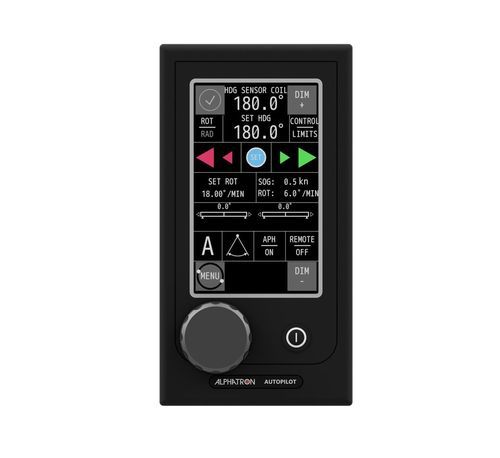

The AlphaPilot MFS is a speed-adaptive, Type Approved and Wheelmark autopilot system for a wide range of commercial and leisure vessels. It supports single rudder, linked rudders, independent rudders and azimuth Z-drive configurations. The system features an extremely compact 5-inch color touchscreen display suitable for flush mounting or integration into furniture such as an armrest.

Key features

• Speed-adaptive autopilot control
• 5-inch color touchscreen display
• Adaptive control for varying speeds and sea conditions
• Automatic permanent helm function

Operation
The AlphaPilot MFS is operated via an intuitive 5-inch touchscreen that presents clear navigational information and allows direct access to menus and adjustable parameters. The user interface is designed for quick configuration and straightforward daily use.

Applications & certifications
The unit is applicable to vessels up to 30 knots in standard operation and is Type Approved for High-Speed Craft (HSC) in accordance with ISO 16329, extending the operational range up to 70 knots. It is suited to both newbuild and retrofit projects for vessels up to 3000 GT. For larger vessels or more complex steering arrangements, including tillers or multiple control stations, the AlphaPilot MFM is recommended.

Technical specifications

• Product: AlphaPilot MFS
• Display: 5-inch color touchscreen
• Control: Speed-adaptive autopilot
• Supported steering configurations: single rudder, linked rudders, independent rudders, azimuth Z-drives
• Applicable speed: up to 30 knots (standard); up to 70 knots for HSC per ISO 16329
• Applicability: newbuild and retrofit up to 3000 GT
• Mounting: extremely compact display, suitable for flush or integrated installation (e.g., armrest)
• Operation: touchscreen-driven menus and configurable parameters
• Recommended alternative for larger/complex installations: AlphaPilot MFM
