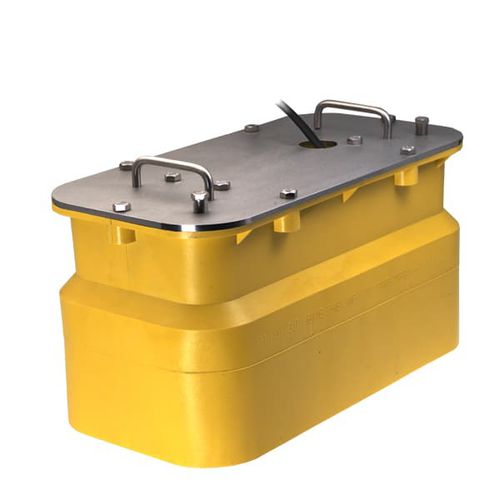

Depth transducer R599LH
acousticfor boatfishfinder

depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, acoustic
Application domain
for boat
Other characteristics
ultrasonic, CHIRP


The R599LH is the go-to transducer for today’s top captains who want the maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R599LH is packed with a twenty-five element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow (8° to 4°) beam, delivering amazing target resolution and bottom detail. The transducer is installed in the included tank which has been cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The R599LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or multi-hull boats. Features Depth and fast-response water-temperature sensor 2 to 3 kW of power for exceptional deep-water performance Low frequency: 28 to 60 kHz 23° to 9° port-starboard beamwidth 11° to 5° fore-aft beamwidth Maximum depth of 3,048 m (10,000') High frequency: 130 to 210 kHz 8° to 4° beamwidth Maximum depth of 457 m (1,500') 112 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Urethane housing with plastic tank for in-hull mounting Also available as pocket/keel (CM599LH) and external (R509LH) mounts Exclusive Xducer ID® technology
