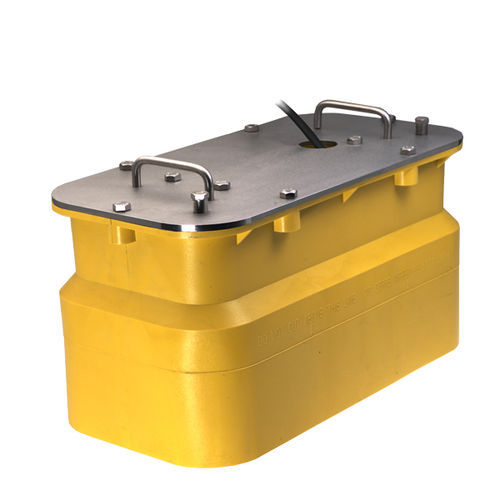

Depth transducer R111LH
acousticfor boatfishfinder

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, acoustic
Application domain
for boat
Other characteristics
ultrasonic, CHIRP


This powerhouse, 2 kW transducer delivers extreme target detail, bottom discrimination, and bait and game-fish separation. The R111LH is packed with a fifteen-element, low-frequency array that operates anywhere between 38 and 75 kHz, delivering great depth capability down to 1,829 m (6,000'). The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow (8° to 4°) beam that provide tremendous bottom detail and fish-target discrimination at depths to 457 m (1,500'). The transducer is installed in the included tank which has been cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The R111LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or multi-hull boats. Features Depth only 2 kW for great deep-water performance Low frequency: 38 to 75 kHz 19° to 10° port-starboard beamwidth 10° to 5° fore-aft beamwidth Maximum depth of 1,829 m (6,000') High frequency: 130 to 210 kHz 8° to 4° beamwidth Maximum depth of 457 m (1,500') 117 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 60, and 200 kHz plus everything else in the bandwidth Urethane transducer housing with plastic mounting tank Also available as pocket/keel (PM111LH) and external (R109LH) mounts Exclusive Xducer ID® technology Specifications Weight: 19.7 kg (43.4 lb.) Recommended Boat Length: 12 m (40') and above Hull Material: Solid fiberglass only Hull Deadrise: Up to 22° (short side), up to 12° (long side) Acoustic Window: Epoxy/urethane Includes: Tank and mounting hardware
