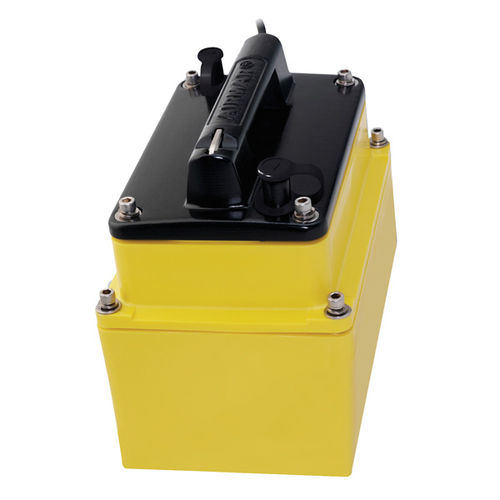

Depth transducer M265LM
acousticfor boatfishfinder

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, acoustic
Application domain
for boat
Other characteristics
ultrasonic, CHIRP


The M265LM Chirp-ready transducer is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse transducer delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths. The low-frequency band provides deep-water performance down to 914 m (3,000') and is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band is excellent for identifying targets suspended close to the bottom on structure and within the water column. The Sealcast™ M265LM includes a plastic tank which is aligned to the centerline and secured inside the hull. Then it is filled with non-toxic antifreeze. The transducer is inserted into the tank and adjusted for the proper deadrise offset, insuring the beam is shooting straight down for maximum echo returns. Antifreeze is the best medium to transmit through solid fiberglass and into the surrounding water. Designed for boats up to 11 m (36') with a solid-fiberglass hull. Low frequency 42 to 65 kHz/Medium frequency 85 to 135 kHz Features: Depth only 1 kW power for excellent, deep to mid-depth performance Low frequency: 42 kHz to 65 kHz -25° to 16° port-starboard beamwidth -Maximum depth of 914 m (3,000') Medium frequency: 85 kHz to 135 kHz -16° to 11° beamwidth -Maximum depth of 457 m (1,500') 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
