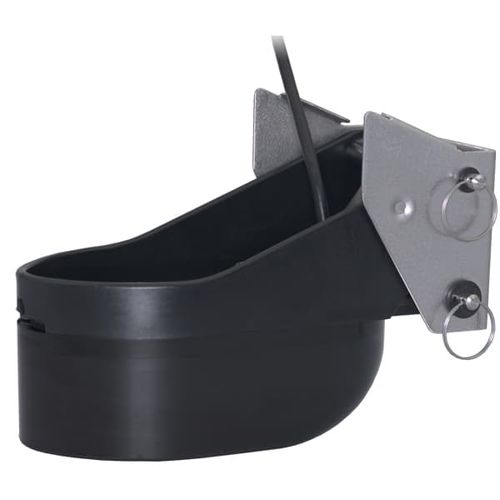

Depth transducer TM265LM
water temperatureacousticangle

depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic, angle
Application domain
for boat
Other characteristics
ultrasonic, CHIRP, transom-mount


The TM265LM, Chirp-ready transducer is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths. The low-frequency band provides deep-water performance down to 914 m (3,000') and is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band is excellent for identifying targets suspended close to the bottom, on structure, and within the water column. Low frequency 42 to 65 kHz, Medium frequency 85 to 135 kHz Features Depth and fast-response water-temperature sensor 1 kW power for excellent deep to mid-depth performance Low frequency: 42 to 65 kHz 25° to 16° port-starboard beamwidth Maximum depth 914 m (3,000') Medium frequency: 85 to 135 kHz 16° to 11° beamwidth Maximum depth 457 m (1,500') 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths Transom-mount, urethane housing with a stainless steel bracket for installation on boats of all propulsion types Also available as in-hull (M265LM), welded-tank (CM265LM), thru-hull (B265LM), and pocket/keel (PM265LM) mounts Exclusive Xducer ID® technology Specifications Weight: 4 kg (8.9 lb.) Recommended Boat Length: Up to 10 m (32') Transom Angle: 3° to 21° Acoustic Window: Urethane Includes: Adjustable, stainless steel bracket and mounting hardware Transducer Element: Eight internal broadband ceramic assemblies
