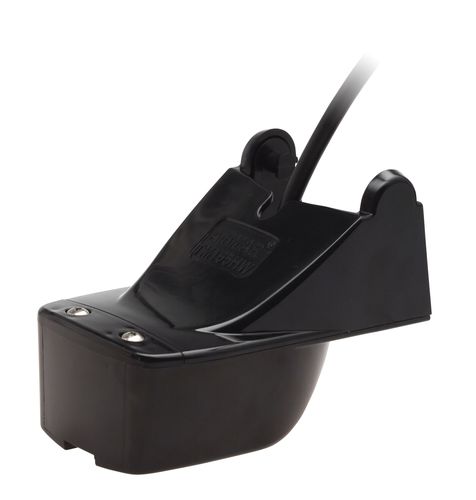

Depth transducer TM165HW
water temperatureacousticfor boat

depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, CHIRP, transom-mount


Maximize coverage under your boat and see what you’ve been missing. The new TM165HW features a high-frequency range of 150 to 250 kHz and a super-wide beamwidth, averaging 30°, providing maximum coverage across the frequency band. In addition to improving the performance of Chirp-capable fishfinders, anglers using this new wide-beam transducer will achieve three-times the coverage compared to standard high-frequency Chirp-ready transducers. Wide beamwidth, together with the high-frequency range, provides vast bottom coverage and precise fish detection in the upper-water column that can sometimes go unseen with narrow-beam transducers. Airmar’s new wide-beam format also creates crisper and larger return images on the display. Compatibility: Lowrance - All units compatible except Hook series Raymarine - All compatible Simrad - All compatible Garmin - GPSMAP 7600,8600,7X2/9X2/10x2/ 12x2, GSD26 Furuno: not until V4 software later in 2020 Humminbird - Helix and Solix can be set manually. SM3000 sets parameters dynamically using XiD Features: Depth and fast-response water-temperature sensor 600 W with a maximum depth of 152 m (500’) High frequency: 150 to 250 kHz -Super-wide 30° average beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation High wide beamwidth yields more coverage for detecting fish in the upper-water column Plastic release bracket protects sensor from frontal impact Chemical and impact-resistant plastic housing Recommended for planing hulls Exclusive Xducer ID® technology
