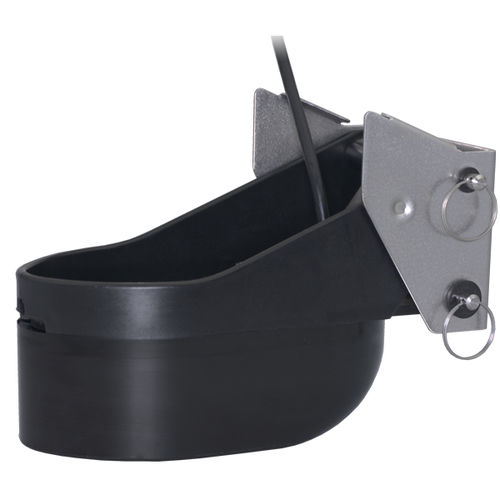

Depth transducer TM185M
temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, CHIRP, transom-mount


The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500') and delivers ultra-clear target resolution. The TM185M transmits across the following bandwidth: Medium frequency 85 to 135 kHz Features Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500') Medium frequency: 85 to 135 kHz 16° to 11° beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID® technology Specifications Weight: 4.2 kg (9.2 lb.) Recommended Boat Length: Up to 10 m (32') Transom Angle: 3° to 21° Acoustic Window: Urethane Includes: Adjustable, stainless steel bracket and mounting hardware Transducer Element: One internal broadband ceramic assembly
