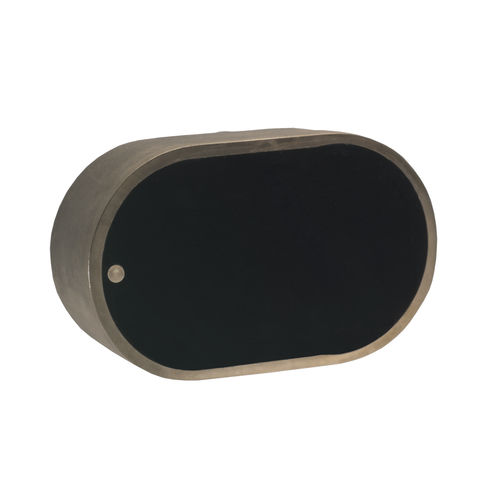

Depth transducer PM265LM
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, CHIRP


The PM265LM Chirp-ready transducer is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1kW powerhouse transducer delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths. The low frequency band provides deep-water performance down to 914 m (3,000') and is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band is excellent for identifying targets suspended close to the bottom, on structure, and within the water column. Low frequency 42 to 65 kHz/Medium frequency 85 to 135 kHz Features Depth and fast-response water-temperature sensor 1 kW power for excellent deep to mid-depth performance Low frequency: 42 to 65 kHz 25° to 16° port-starboard beamwidth Maximum depth 914 m (3,000') Medium frequency: 85 to 135 kHz 16° to 11° beamwidth Maximum depth 457 m (1,500') 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths Urethane housing designed for custom pocket/keel mounting Also available as transom (TM265LM), welded-tank (CM265LM), thru-hull (B265LM), and in-hull (M265LM) mounts Exclusive Xducer ID® technology Specifications Weight: 5.2 kg (11.5 lb.) Recommended Boat Length: 8 m (25') and above Hull Material: Solid fiberglass only Hull Deadrise: Accommodates any deadrise angle based on custom cavity construction Acoustic Window: Urethane Transducer Element: Eight internal broadband ceramic assemblies
