Dive compressor Ergo
for shipsfor shipyardfor boats

dive compressor
dive compressor
Add to favorites
Compare this product


Characteristics

Applications
dive, for ships, for shipyard, for boats, for yachts
Type
nitrox, three-stage, breathing air
Technology
piston
Power source
AC
Portability
mobile
Lubrication
oil-lubricated
Tank volume

Min.: 10 l (3 gal)

Pressure

232 bar, 420 bar (3,365 psi)

Flow

Min.: 14 m³/h (494 ft³/h)

Max.: 19 m³/h (671 ft³/h)

Power

Min.: 4 kW (5 hp)

Max.: 6 kW (8 hp)

Description

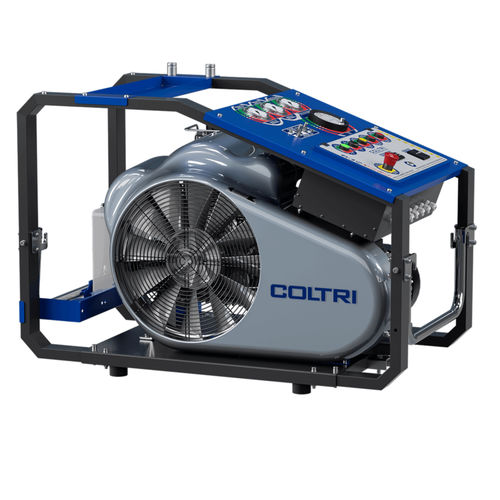

Practical to transport, ERGO stands out for its sturdiness and great operational efficiency. Equipped with monitoring panel complete with interstage pressure gauges, hitchhiking with adjustable pressure switch, automatic condensate drain and direction of rotation control. Monobloc in aluminum, Gooseneck in forged steel Splash lubrication Forged aluminum connecting rods Main roller bearings Roller connecting rod bearings 1st and 2nd stage cylinders in aluminum with hard nicasil coating 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating 3rd stage cylinder in special treated steel. Stainless steel intake and exhaust valves Interstage cooling pipes in stainless steel Separator after the 2nd and 3rd stage Safety valves after each stage Maxifilter filter system Oil level sensor Open frame designed to facilitate maintenance operations and portability. The tilting motor-holder plate ensures constant V-belt tension. The protective casing in thermo-formed material conveys the cooling air on the cylinders and on the inter-stage pipes, guaranteeing a high compression efficiency. The control console equipped with inter-stage pressure gauges, the internal temperature indicator, the alarm presence and incorrect phase sequence, the oil lack alarm and the start stop and manual condensate drain commands allow easy management and maintenance of the compressor . Imagine having a compressor capable of great performance and endowed with extraordinary solidity. What would all this be without absolute simplicity in managing it? We believe that innovation is for this: to make everything simpler.
