Dive compressor Silent
for shipsfor shipyardnitrox

dive compressor
dive compressor
dive compressor
dive compressor
dive compressor
dive compressor
dive compressor
Add to favorites
Compare this product


Characteristics

Applications
dive, for ships, for shipyard
Type
nitrox, three-stage, breathing air
Technology
piston
Power source
AC
Portability
stationary
Lubrication
oil-lubricated

Description

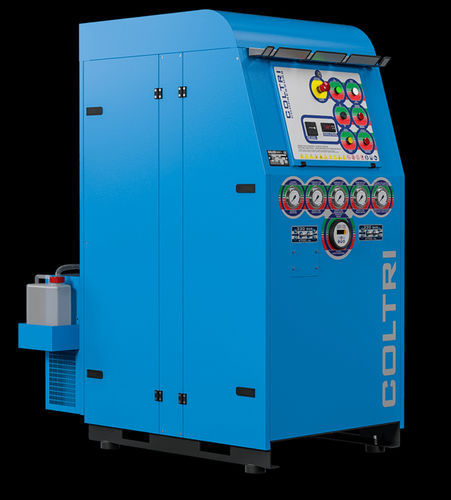

The SILENT model represents excellence in soundproofing. It has been designed to meet the needs of very intensive uses and when large filling capacities are required. Equipped with 4 front filling connections for high pressure hoses (from 232 to 420 bar), a control panel and an electrical display. They are equipped with a three-phase electric motor and powerful pumping units (MCH 22, MCH 30, MCH 36 and MCH 45 depending on the specific model). The structure, which has been specially designed to improve soundproofing, is used to go below the threshold of 70 dB in operation. For the longer life of the filters, the external dryers RF 500 and RF 1000 are available. Optionals include: electronic touch screen panel, Presec for filter saturation control and remote filling panel. Pumping group capacity MCH 22 Three-phase Electric Motor - 450 l/m - 27,00 m³/h - 15.89 CFM FAD MCH 30 Three-phase Electric Motor - 550 l/m - 33,00 m³/h - 19.42 CFM FAD MCH 36 Three-phase Electric Motor - 650 l/m - 39,00 m³/h - 22.95 CFM FAD MCH 45 Three-phase Electric Motor - 750 l/m - 45,00 m³/h - 26.49 CFM FAD Filling time: * * Cylinder filling time from 10 l-0/200 bar (cylinder filling measurement from 0 to 200 bar ± 5%) MCH 22 Three-phase Electric Motor - 4 min. 30 sec. MCH 30 Three-phase Electric Motor - 4 min. MCH 36 Three-phase Electric Motor - 3 min. MCH 45 Three-phase Electric Motor - 2 min. 40 sec. Operating pressure 232 - 330 - 420 bar 3365 - 4786 - 6092 PSIG Net weight MCH 22 - Three-phase Electric Motor - 445 kg - 981 Lbs MCH 30 - Three-phase Electric Motor - 455 kg - 1003 Lbs MCH 36 - Three-phase Electric Motor - 455 kg - 1003 Lbs MCH 45 - Three-phase Electric Motor - 455 kg - 1003 Lbs
